Technical specifications
| Pump type | CM |
| Minimum efficiency index (MEI) | 0.7 |
| Phases | 3 |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Insulation class | F |
| Frequency converter | None |
| Max. liquid temp. (°C) | 90 °C |
| Min. liquid temp. (°C) | -20 °C |
| Max. ambient temp. (°C) | 55 °C |
| Max. operating pressure | 10 bar |
| Pipe connection | Rp |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Shaft seal | AVBE |
| Length (mm) | 340 mm |
| Height (mm) | 75 mm |
| Gross weight | 14.9 kg |
| Net weight | 12.4 kg |
| Approvals | CE,EAC,UKCA |
| EAN code | 5715120015944 |

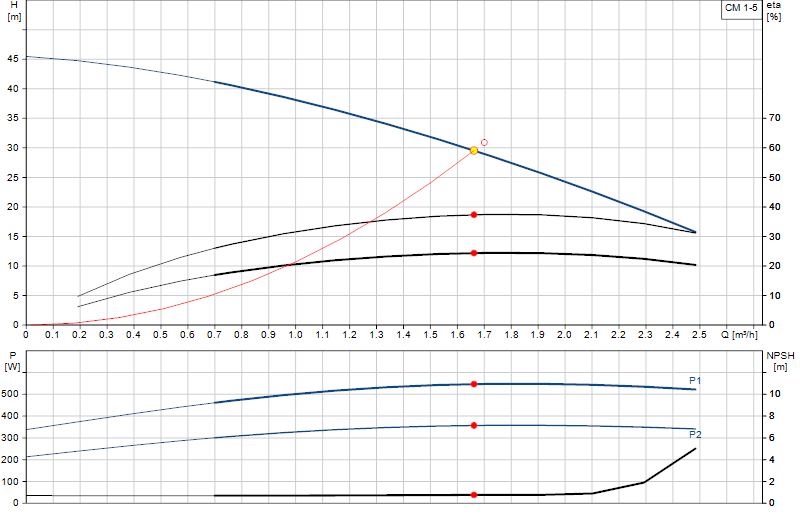

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
CM, CME (Service instructions)
Service · English 2,4 MB -
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
CME, CM (Data booklet)
Data booklets · English 37,8 MB -
CM (I & O instructions)
Installation & operating instructions · English 1,2 MB -
Moroccan declaration of conformity, CM, CMV, CM-L (Instruction)
Installation & operating instructions · English 0,2 MB -
CM (Quick Guide)
Quick Guides · English 4,9 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CM, CME, COMPACT PUMPS FOR DEMANDING APPLICATIONS (Product brochure)
Product Brochures · English 1,1 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS CM, Horizontal multi-stage pumps up to 7.5 kW (Product brochure)
Product Brochures · English 3,1 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
CM 1, 3, 5, 10, 15, 25 - A / I / G / CMV 3, 5 (Service kit instruction)
Service · English 2,6 MB -
CM, CME (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
CM, CME and Boosters (Service kit catalogue)
Service · English 2,7 MB -
CM, CME and Boosters (Service Kit Catalogue)
Service · English 3,4 MB -
CM, Impeller replacement (Service kit instructions)
Service · English 1,3 MB
