Technical specifications
| Number of stages | 7 |
| Minimum efficiency index (MEI) | -.-- |
| Power P2 (kW) | 75 kW |
| Phases | 3 |
| Voltage (V) | 380-400-415 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP66 |
| Max. liquid temp. (°C) | 40 °C |
| Max. operating pressure | 82.7 bar |
| Impeller material | Stainless steel |
| Gross weight | 528 kg |
| Net weight | 411 kg |
| Motor number | 96539769 |
| EAN code | 5700317733930 |

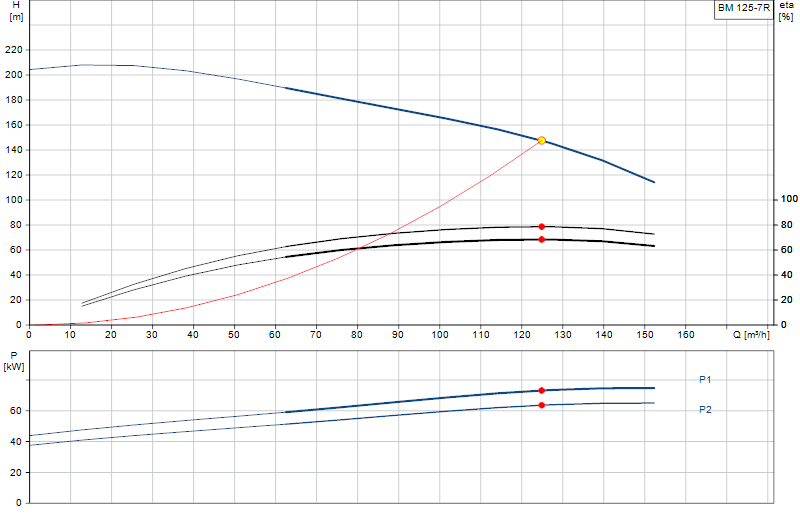

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
BM, BMhp - booster modules (Data booklet)
Data booklets · English 6,8 MB -
BM 8, Replacement - motor cable and 6" / 8" motor (Installation and operating instructions)
Installation & operating instructions · English 5,0 MB -
BM, BMhp (I & O instructions)
Installation & operating instructions · English 2,7 MB -
BMQ, BMQE-NE (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Desalination – An introduction (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
BM, BMB, BME, BMET, BMEX, Booster modules (Service Kit Catalogue)
Service · English 0,7 MB -
BM, BME, BMET (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,2 MB
