Technische Daten
| Nennförderstrom (m³/h) | 1.37 l/s |
| Nennförderhöhe (m) | 6.21 m |
| Max. Förderhöhe (m) | 8.5 m |
| Leistungsaufnahme P1 (W) | 620 W |
| Phasen | 1 |
| Nennspannung | 220-240 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP44 |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 50 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Anschluss-Nenndruck | PN 1,5 |
| Werkstoff Pumpengehäuse | Composite |
| Laufradwerkstoff | Polymer - PPE |
| Länge (mm) | 438 mm |
| Höhe (mm) | 323 mm |
| Breite (mm) | 158.5 mm |
| Bruttogewicht | 9.27 kg |
| Nettogewicht | 7.28 kg |
| Zulassungen | CE,SEPRO,CHROHS,MORO,AAA |
| EAN-Code | 5710624187241 |

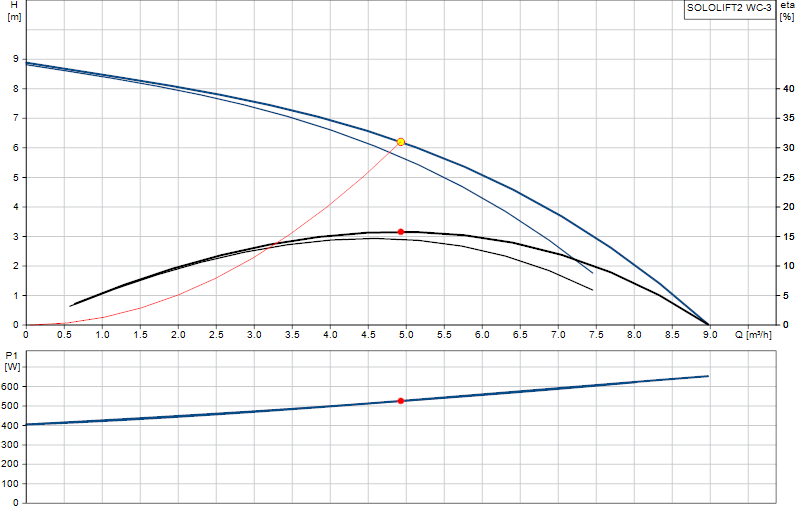

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
