Technische Daten
| Nennförderstrom (m³/h) | 1.37 l/s |
| Nennförderhöhe (m) | 6.21 m |
| Max. Förderhöhe (m) | 8.5 m |
| Leistungsaufnahme P1 (W) | 620 W |
| Phasen | 1 |
| Nennspannung | 220-240 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP44 |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 50 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Anschluss-Nenndruck | PN 1,5 |
| Werkstoff Pumpengehäuse | Composite |
| Laufradwerkstoff | Polymer - PPE |
| Länge (mm) | 452.5 mm |
| Höhe (mm) | 346.7 mm |
| Breite (mm) | 175.5 mm |
| Bruttogewicht | 9.06 kg |
| Nettogewicht | 7.22 kg |
| Zulassungen | CE,SEPRO,CHROHS,MORO,AAA |
| EAN-Code | 5710624187234 |

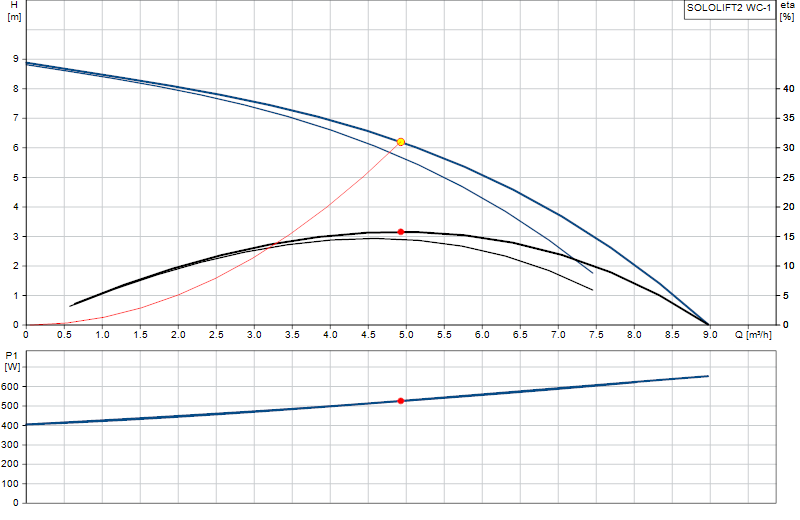

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
Dokumente und Datenblätter
-
Sololift2 (Service Instruction)
Service · English 2,0 MB -
Sololift2 (Data Booklet)
Data booklets · English 13,7 MB -
LC A1, LC A2 (Multi language) (Safety instructions)
Installation & operating instructions · English 0,6 MB -
LC A2 (Multi language) (Installation and operating instructions)
Installation & operating instructions · English 0,8 MB -
Moroccan declaration of conformity, Sololift2 C3 & D2 (Declaration)
Installation & operating instructions · English 0,2 MB -
Moroccan declaration of conformity, Sololift2 WC1, WC3 & CWC3 (Declaration)
Installation & operating instructions · English 0,2 MB -
Sololift2 C-3 (Alarm switch) (Installation and operating instructions)
Installation & operating instructions · English 0,5 MB -
Sololift2 C-3 (Multi language) (Installation and operating instructions)
Installation & operating instructions · English 1,0 MB -
Sololift2 CWC-3 (Multi language) (Installation and operating instructions)
Installation & operating instructions · English 1,1 MB -
Sololift2 D-2 (Multi language) (Installation and operating instructions)
Installation & operating instructions · English 1,1 MB -
Sololift2 D-2, C-3 (Safety instructions)
Installation & operating instructions · English 0,6 MB -
Sololift2 WC-1, WC-3 (Multi language) (Installation and operating instructions)
Installation & operating instructions · English 1,1 MB -
Sololift2 WC-1, WC-3, CWC-3 (Alarm device) (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
Sololift2 WC-1, WC-3, CWC-3 (Safety instructions)
Installation & operating instructions · English 0,6 MB -
Sololift2 WC, Replacement Hose (Installation and operating instructions)
Installation & operating instructions · English 0,4 MB -
Sololift2, Drain Hose (Installation and operating instructions)
Installation & operating instructions · English 0,5 MB -
Sololift2 C-3 (Quick Guide)
Quick Guides · English 14,5 MB -
Sololift2 C-3, Pressure switch (Quick Guide)
Quick Guides · English 1,4 MB -
Sololift2 C-3/D-2, Pressure switch (replace membrane) (Quick Guide)
Quick Guides · English 0,9 MB -
Sololift2 CWC-3 (Quick Guide)
Quick Guides · English 13,6 MB -
Sololift2 D-2 (Quick Guide)
Quick Guides · English 7,3 MB -
Sololift2 WC-1 (Quick Guide)
Quick Guides · English 12,2 MB -
Sololift2 WC-3 (Quick Guide)
Quick Guides · English 14,9 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW, Quick Selection guide, Drainage (Product brochure)
Product Brochures · English 0,2 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
QUICK SELECTION GUIDE - SOLOLIFT2 RANGE (product brochure)
Product Brochures · English 0,3 MB -
QUICK SELECTION GUIDE - SOLOLIFT2 RANGE (Product brochure)
Product Brochures · English 0,5 MB -
Quick Selection guide Drainage (Product brochure)
Product Brochures · English 0,2 MB -
SOLOLIFT2 RANGE (Product brochure)
Product Brochures · English 0,9 MB -
SOLOLIFT2 (Service Kit Catalogue)
Service · English 2,1 MB
