Technische Daten
| Nennförderstrom (m³/h) | 19 l/s |
| Nennförderhöhe (m) | 14.4 m |
| Max. Förderhöhe (m) | 24.8 m |
| Phasen | 3 |
| Nennspannung | 380-415 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 6 bar |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Höhe (mm) | 24 mm |
| Bruttogewicht | 154 kg |
| Nettogewicht | 135 kg |
| Zulassungen | EN12050-2 |
| EAN-Code | 5700395045567 |

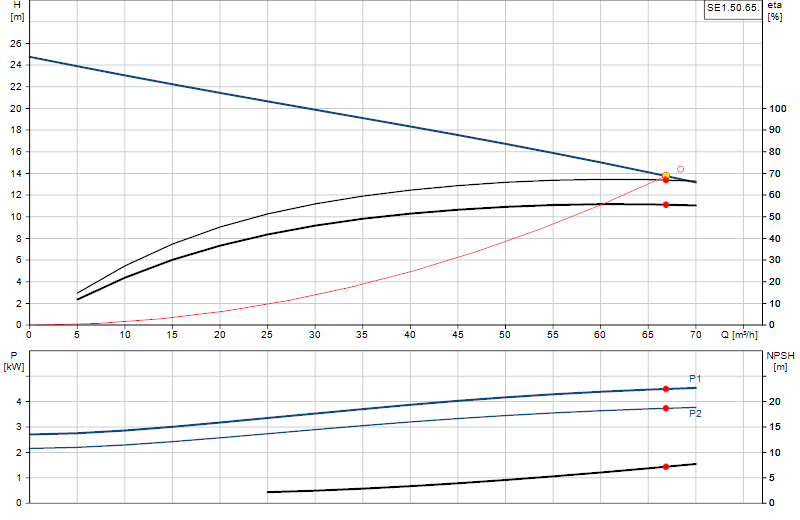

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
Dokumente und Datenblätter
-
SE1.50, SE1.80, SE1.100, SEV.65, SEV.80, SEV.100, 1.1 to 11 kW (Service instructions)
Service · English 4,6 MB -
SE1.50, SE1.80, SEV.65, SEV.80, SE1.100, SEV.100 without sensor (Service instructions)
Service · English 0,8 MB -
SE and SL pumps, 9-30 kW (Data booklet)
Data booklets · English 35,0 MB -
SE1, SEV pumps, 1.1 to 11 kW (Data booklet)
Data booklets · English 17,1 MB -
SL1, SLV pumps (1.1 to 11 kW) (Data booklet)
Data booklets · English 8,5 MB -
Correction sheet - SE1/SEV 1.1-11 kW IOS
Installation & operating instructions · English 0,2 MB -
SE cable Ex (I & O instructions)
Installation & operating instructions · English 1,5 MB -
SE1 50, 80, 100, SEV 65, 80, 100 (I & O instructions)
Installation & operating instructions · English 3,0 MB -
SE1 50, 80, 100, SEV 65, 80, 100 (Safety instructions)
Installation & operating instructions · English 5,8 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
Food application pumps - Nourish your business with Grundfos (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS iSOLUTIONS FOR WATER UTILITY APPLICATIONS (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS S-TUBE IMPELLER (Product brochure)
Product Brochures · English 1,0 MB -
Grundfos SE/SL - Submersible and dry-installed wastewater pumps
Product Brochures · English 4,4 MB -
GRUNDFOS SEV & SE1 (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS SEV & SE1 WITH ANALOG SENSORS (Product brochure)
Product Brochures · English 1,3 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB -
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Product Brochures · English 8,2 MB -
Grundfos Whitepaper, wastewater pumps (Product brochure)
Product Brochures · English 0,6 MB -
Harsh environment wastewater pumps
Product Brochures · English 2,5 MB -
Hydrogen Sulphide, -identifying and solving the problem (Product brochure)
Product Brochures · English 25,6 MB -
INCREASE OPERATIONAL RELIABILITY IN YOUR NETWORK (Product brochure)
Product Brochures · English 2,9 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
PUMPS FOR BIOETHANOL AND BIODIESEL (Product brochure)
Product Brochures · English 1,1 MB -
SE, SL Submersible and dry-installed wastewater pumps (Product brochure)
Product Brochures · English 1,1 MB -
Lifting bracket (Service Kit Instruction)
Service · English 0,5 MB -
O-ring kit instruction SE, SL D22 (Service kit instruction)
Service · English 0,1 MB -
SE (Service Kit Catalogue)
Service · English 1,1 MB -
SE and SL Transient barrier
Service · English 0,6 MB -
SE1, SEV, SL1, SLV, 1.1 to 11 kW (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SE1/SEV and SL1/SLV 1.1 to 11 kW (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SE1/SEV and SL1/SLV 1.1 to 11 kW (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
WIO Sensor (Service Kit Instruction)
Service · English 2,5 MB
Varianten & alternative Codes
Gleichwertige Alternativen
Pumpen derselben hydraulischen Klasse wie 96047525 (gleichwertiger Förderstrom und Förderhöhe), im Katalog verfügbar.
