Technische Daten
| Nennförderstrom (m³/h) | 11.3 l/s |
| Nennförderhöhe (m) | 17.97 m |
| Max. Förderhöhe (m) | 28.9 m |
| Phasen | 3 |
| Nennspannung | 220-240 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Isolationsklasse | H |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 6 bar |
| Anschluss-Nenndruck | PN 10 |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Höhe (mm) | 0 mm |
| Bruttogewicht | 157 kg |
| Nettogewicht | 137 kg |
| Zulassungen | CE EN12050-1 |
| EAN-Code | 5711498459380 |

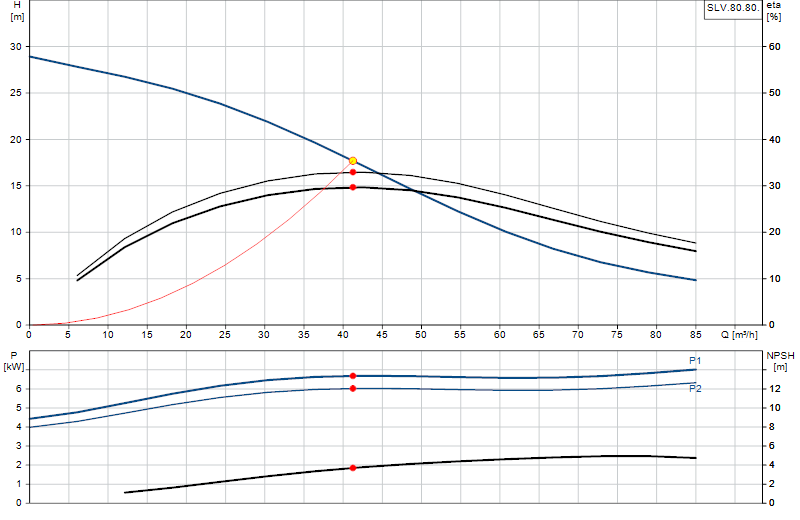

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
