Technische Daten
| Max. Förderhöhe (m) | 20.5 m |
| Phasen | 3 |
| Spannung (V) | 415/719 V |
| Frequenz (Hz) | 50 Hz |
| Max. Nennstrom (A) | 299 A |
| Schutzart | IP68 |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 10 |
| Werkstoff Pumpengehäuse | Ductile iron |
| Laufradwerkstoff | Ductile iron |
| Bruttogewicht | 2500 kg |
| Nettogewicht | 2380 kg |
| EAN-Code | 5700312032335 |

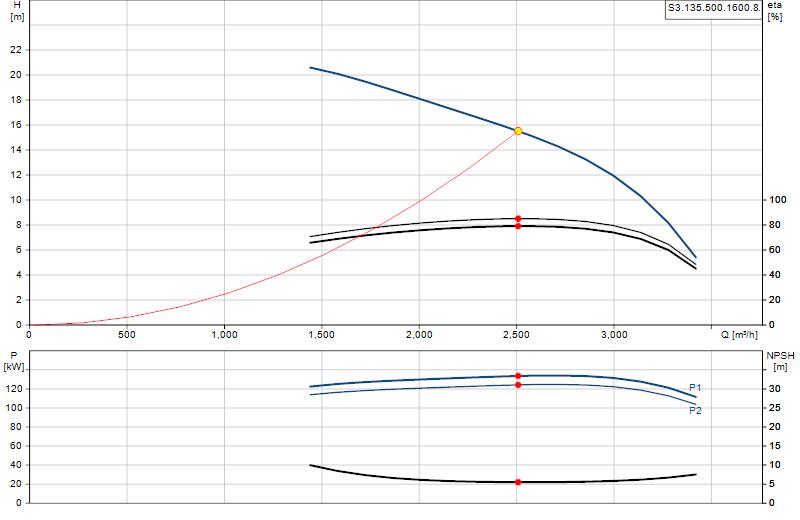

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
