Technische Daten
| Max. Förderhöhe (m) | 83 m |
| Phasen | 3 |
| Spannung (V) | 380/660 V |
| Frequenz (Hz) | 50 Hz |
| Max. Nennstrom (A) | 1060 A |
| Schutzart | IP68 |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 10 |
| Werkstoff Pumpengehäuse | Ductile iron |
| Laufradwerkstoff | Ductile iron |
| Bruttogewicht | 6550 kg |
| Nettogewicht | 6100 kg |
| EAN-Code | 5712607792145 |

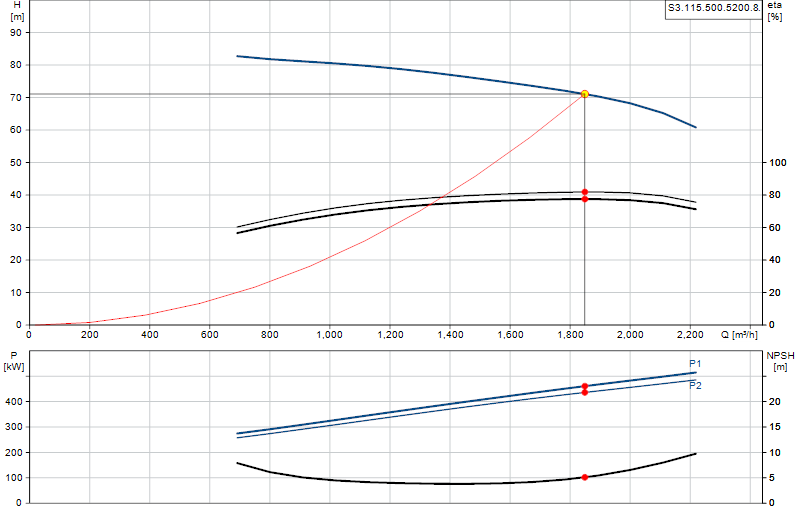

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
