Specifiche tecniche
| Portata nominale (m³/h) | 27.6 m³/h |
| Prevalenza nominale (m) | 7.89 m |
| Fasi | 3 |
| Tensione (V) | 400-415 V |
| Frequenza (Hz) | 50 Hz |
| Classe di isolamento | H |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 10 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 6/10 |
| Interasse (mm) | 340 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Stainless steel |
| Peso lordo | 30.6 kg |
| Peso netto | 28.9 kg |
| Approvazioni | AAA,EAC |
| Codice EAN | 5708601058974 |

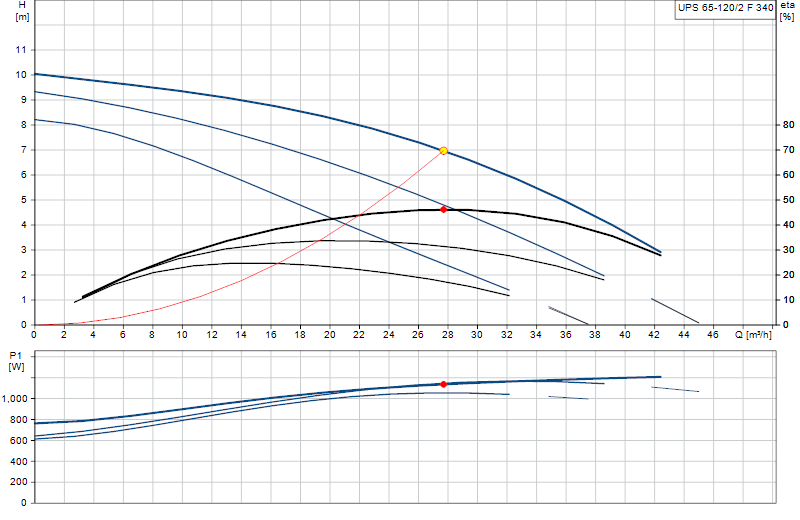

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
Series 200 - UPS, UPSD circulator pumps 50/60 Hz
Data booklets · English 8,6 MB -
UP, UPS, UPSD Circulator pumps
Data booklets · English 28,8 MB -
Relay Module Set - UPS, UPSD Series 200 (Installation and operating instructions)
Installation & operating instructions · English 2,2 MB -
UPS, UPSD Series 200 (I & O instructions)
Installation & operating instructions · English 3,0 MB -
UPS, UPSD Series 200 (Relay module) (Fitting instructions)
Installation & operating instructions · English 3,7 MB -
UPS, UPSD Series 200 (Safety instructions)
Installation & operating instructions · English 2,4 MB -
UPS, UPSD Series 200, Protection module (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
UPS, UPSD Series 200, Pump head (Installation and operating instructions)
Installation & operating instructions · English 7,7 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
GRUNDFOS CASE STORY, WARSAW, POLAND (Product brochure)
Product Brochures · English 0,6 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 96402280 (portata e prevalenza equivalenti), disponibili a catalogo.
