Specifiche tecniche
| Portata nominale (m³/h) | 0.711 l/s |
| Prevalenza nominale (m) | 2.52 m |
| Prevalenza max (m) | 5 m |
| Potenza assorbita P1 (W) | 250 W |
| Fasi | 1 |
| Tensione nominale | 220-240 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | B |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Tipo di attacco | R |
| Dimensione attacco | 1 1/4 inch |
| Materiale corpo pompa | Polypropylene |
| Materiale girante | Composite |
| Peso lordo | 5.08 kg |
| Peso netto | 4.32 kg |
| Approvazioni | CE,LGA,VDE,UKCA,SEPRO |
| Codice EAN | 5700830761359 |

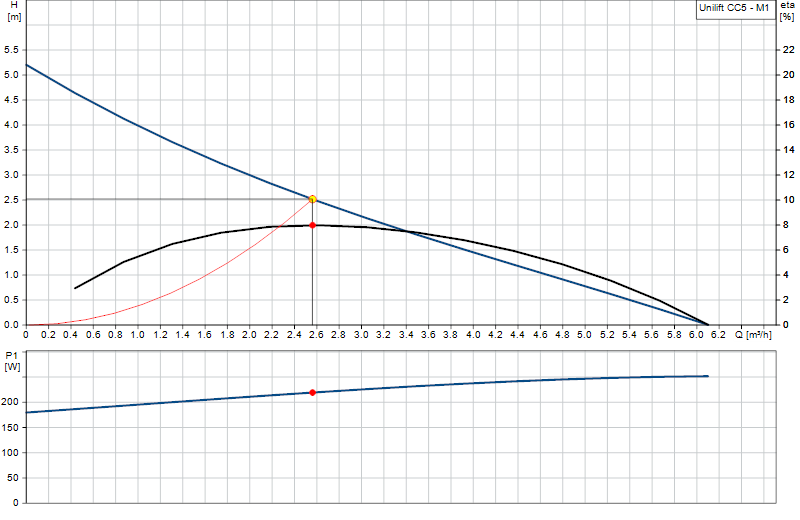

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
Unilift CC (Service instruction)
Service · English 0,8 MB -
Unilift CC, KP, AP and KPC (Data booklet)
Data booklets · English 24,0 MB -
Moroccan declaration of conformity, Unilift CC (Declaration)
Installation & operating instructions · English 0,2 MB -
UNILIFT CC 5, CC 7, CC 9 (Installation and operating instructions)
Installation & operating instructions · English 4,7 MB -
Unilift CC 5, CC 7, CC 9 (Installation and operating instructions)
Installation & operating instructions · English 94,3 MB -
Unilift CC, KPC & KPC 24/7 (Safety instructions)
Installation & operating instructions · English 1,1 MB -
Unilift CC 5, Unilift CC 7, Unilift CC 9 (Quick Guide)
Quick Guides · English 3,6 MB -
Unilift CC, MULTI-BOX (B-CC7) (Quick Guide)
Quick Guides · English 1,7 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW, Quick Selection guide, Drainage (Product brochure)
Product Brochures · English 0,2 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
Grundfos MULTIBOX - Your ultimate flood rescue solution
Product Brochures · English 0,6 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
Quick Selection guide Drainage (Product brochure)
Product Brochures · English 0,2 MB -
Unilift CC (Drainage pumps)
Product Brochures · English 1,1 MB -
UNILIFT CC, MULTI-PURPOSE DRAINAGE PUMPS (Product brochure)
Product Brochures · English 0,3 MB -
Unilift AP, APB, APG, CC, KP (Service Kit Catalogue)
Service · English 2,0 MB -
Unilift CC 5, CC 7, CC 9 (Service Kit Instruction)
Service · English 0,8 MB -
Unilift CC Cable/float switch (Service kit instruction)
Service · English 0,8 MB -
Unilit CC, Motor (Service Kit Instruction)
Service · English 1,3 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 96280965 (portata e prevalenza equivalenti), disponibili a catalogo.
