Specifiche tecniche
| Tipo pompa | TPE2 |
| Portata nominale (m³/h) | 120.4 m³/h |
| Prevalenza nominale (m) | 45.85 m |
| Indice di efficienza minima (MEI) | 0.7 |
| Potenza P2 (kW) | 18.5 kW |
| Fasi | 3 |
| Tensione (V) | 380-480 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -25 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 16 |
| Interasse (mm) | 440 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BQQE |
| Lunghezza (mm) | 440 mm |
| Altezza (mm) | 105 mm |
| Peso lordo | 327 kg |
| Peso netto | 284 kg |
| Codice motore | 92875517 |
| Codice EAN | 5715471150837 |

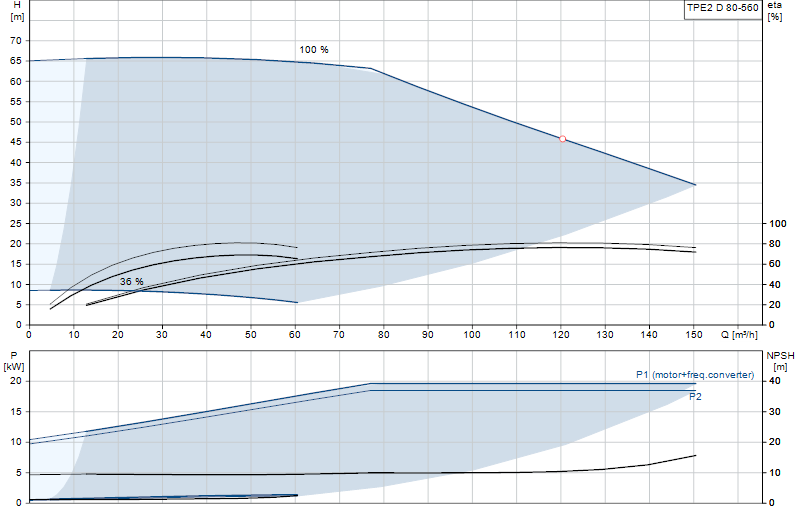

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
