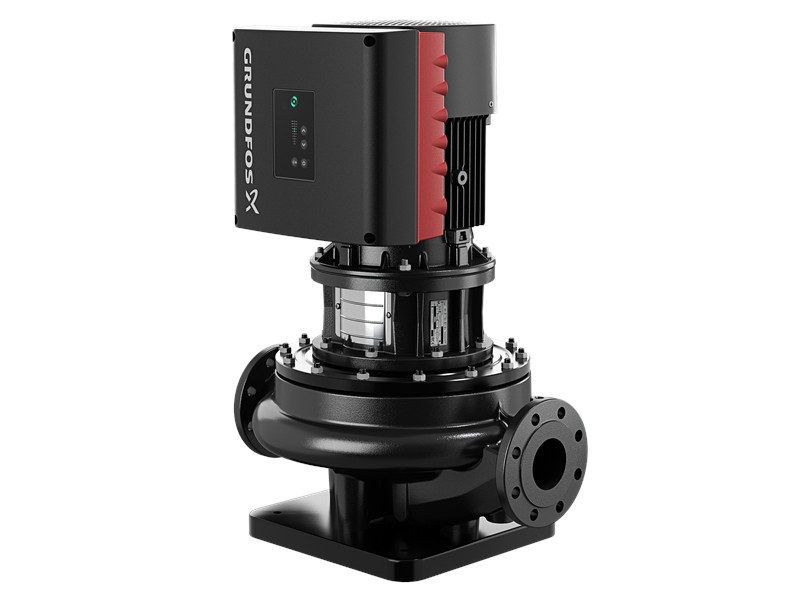

Specifiche tecniche
| Tipo pompa | TPE2 |
| Portata nominale (m³/h) | 168.7 m³/h |
| Prevalenza nominale (m) | 32.63 m |
| Indice di efficienza minima (MEI) | 0.68 |
| Potenza P2 (kW) | 22 kW |
| Fasi | 3 |
| Tensione (V) | 380-480 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 140 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 25 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 25 |
| Interasse (mm) | 670 mm |
| Materiale corpo pompa | Ductile iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | DAQF |
| Lunghezza (mm) | 670 mm |
| Altezza (mm) | 175 mm |
| Peso lordo | 347 kg |
| Peso netto | 315 kg |
| Codice motore | 92924819 |
| Codice EAN | 5715471140104 |

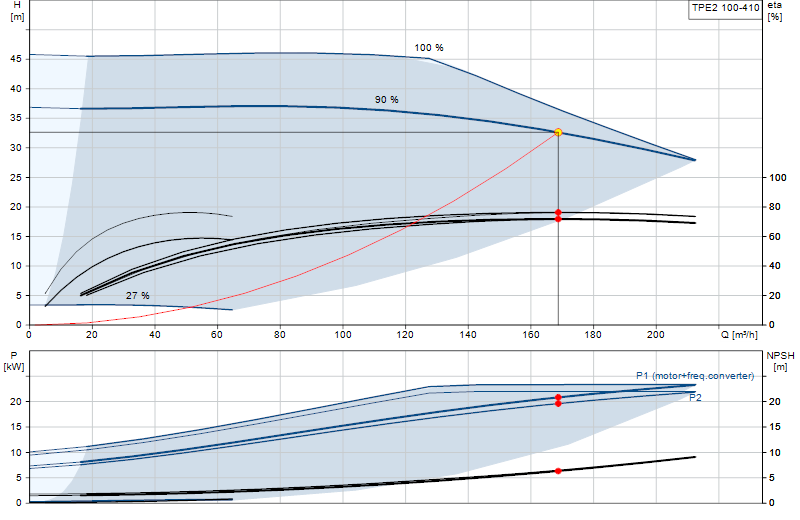

Curva di prestazione
