Specifiche tecniche
| Tipo pompa | TPE |
| Portata nominale (m³/h) | 776.5 m³/h |
| Prevalenza nominale (m) | 20.83 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 55 kW |
| Fasi | 3 |
| Tensione (V) | 380-420D/660-725Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 16 |
| Interasse (mm) | 1240 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BAQE |
| Lunghezza (mm) | 1240 mm |
| Altezza (mm) | 317 mm |
| Peso lordo | 1290 kg |
| Peso netto | 1160 kg |
| Codice motore | 99454146 |
| Codice EAN | 5713829712430 |

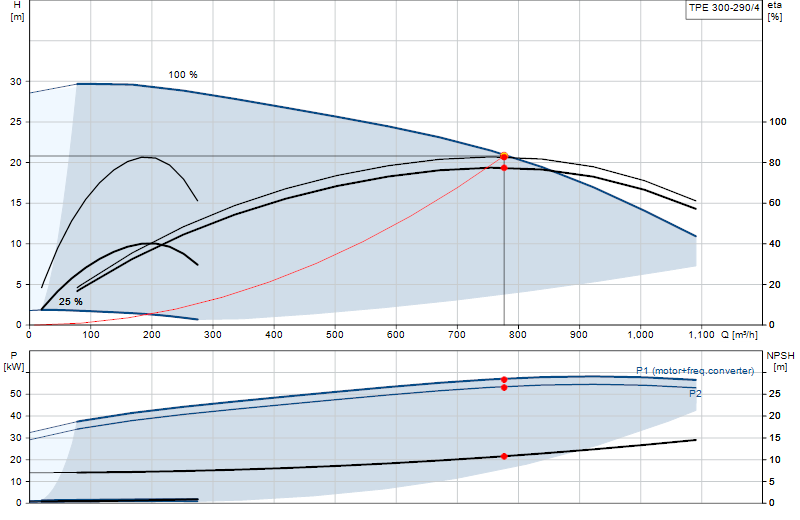

Curva di prestazione
