Specifiche tecniche
| Tipo pompa | TPE |
| Portata nominale (m³/h) | 238.5 m³/h |
| Prevalenza nominale (m) | 9.49 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 7.5 kW |
| Fasi | 3 |
| Tensione (V) | 380-500 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -25 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 16 |
| Interasse (mm) | 800 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BQQE |
| Lunghezza (mm) | 800 mm |
| Altezza (mm) | 250 mm |
| Peso lordo | 315 kg |
| Peso netto | 218 kg |
| Codice motore | 93108549 |
| Codice EAN | 5715468495538 |

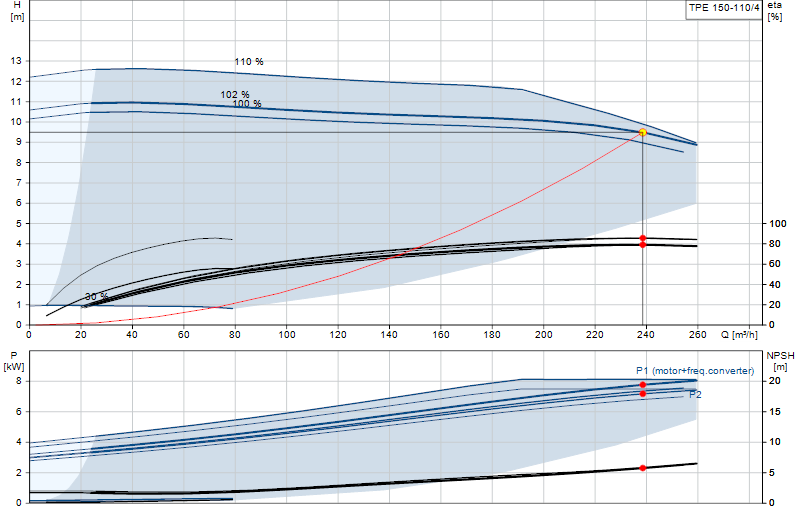

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
TP Series 400 (Service Instructions)
Service · English 0,9 MB -
TP, TPD, TPE, TPED Series 300 (Service Instructions)
Service · English 1,1 MB -
TPE2, TPE2 D, TPE3, TPE3 D (Service instructions)
Service · English 1,4 MB -
TP, TPD, TPE, TPED, TPE2, TPE2 D, TPE3, TPE3 D, In-line circulator pumps (Data booklet)
Data booklets · English 29,6 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
NBE, NBGE, NKE, NKGE, TPE Series 1000, TPE Series 2000, from 30 kW 2-pole and 18.5 kW 4-pole (I & O instructions)
Installation & operating instructions · English 27,7 MB -
NBE, NBGE, NKE, NKGE, TPE Series 1000, TPE Series 2000, from 30 kW 2-pole and 18.5 kW 4-pole (Safety instructions)
Installation & operating instructions · English 4,4 MB -
TP (Series 400) (Installation and operating instructions)
Installation & operating instructions · English 6,8 MB -
TPE, TPED Series 1000; NBE, NBGE, NKE, NKGE; TPE, TPED, NBE, NKE Series 2000 (I&O)
Installation & operating instructions · English 6,5 MB -
TPE, TPED Series 2000 - From 3.0 kW, 2-Pole and from 1.5 kW, 4-Pole (installation and operating instruc
Installation & operating instructions · English 3,4 MB -
TPE, TPED Series 2000 (Installation and operating instructions)
Installation & operating instructions · English 9,0 MB -
TPE, TPED Series 2000 (Safety instructions)
Installation & operating instructions · English 1,0 MB -
TPE, TPED Series 2000, Below 3 kW (Installation and operating instructions)
Installation & operating instructions · English 4,8 MB -
TPE, TPED, NBE, NBGE, MTBE, NKE, NKGE, TPE, TPED, NBE, NKE Series 2000, - below 15 kW, 2-pole and 11 kW, 4-pole
Installation & operating instructions · English 4,8 MB -
TPE, TPED, NKE, NKGE, NBE, NBGE (Below 3 kW) (Installation and operating instructions)
Installation & operating instructions · English 6,5 MB -
TPE, TPED, NKE, NKGE, NBE, NBGE, MTBE (From 3.0 kW, 2-Pole and from 1.5 kW, 4-Pole) (I/O)
Installation & operating instructions · English 4,3 MB -
TPE, TPED, NKE, NKGE, NBE, NBGE, MTBE, TPE, TPED Series 2000 (Safety instructions)
Installation & operating instructions · English 1,8 MB -
TPE, TPED; TPE2, TPE2 D, TPE3, TPE3 D; NBE, NBGE, NKE, NKGE; MTBE (Safety instructions)
Installation & operating instructions · English 1,8 MB -
TPE2 (D), TPE3 (D), With sensor (I & O instructions)
Installation & operating instructions · English 5,6 MB -
TPE2 (D),TPE3 (D) (Installation and operating instructions)
Installation & operating instructions · English 6,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
DOMESTIC HOT WATER CIRCULATION (Product brochure)
Product Brochures · English 0,3 MB -
GRUNDFOS COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 3,7 MB -
GRUNDFOS DISTRIBUTED PUMPING, A PARADIGM SHIFT IN CHILLED WATER SYSTEMS (Product brochure)
Product Brochures · English 2,2 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, INDIAN VERSION (Product brochure)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Philippines version (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Singapore VERSION (Product brochure)
Product Brochures · English 9,2 MB -
HVAC IN COMMERCIAL BUILDINGS, Boiler Shunt (Product brochure)
Product Brochures · English 0,2 MB -
HVAC IN COMMERCIAL BUILDINGS, Chilled Water (Product brochure)
Product Brochures · English 0,3 MB -
iGRID BYPASSES
Product Brochures · English 1,1 MB -
iGRID PRESSURE ZONE
Product Brochures · English 0,9 MB -
iGRID PRESSURE ZONE, Design and Configuration Guide
Product Brochures · English 3,5 MB -
iGRID SERVICES
Product Brochures · English 1,1 MB -
iGRID TEMPERATURE ZONE
Product Brochures · English 1,5 MB -
iGRID TEMPERATURE ZONE, Design and Configuration Guide
Product Brochures · English 3,5 MB -
iGRID, District heating
Product Brochures · English 2,1 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
TP/TPE (Product brochure)
Product Brochures · English 3,8 MB -
TPE, NBE, NKE, NGBE, NKGE (Product brochure)
Product Brochures · English 4,9 MB -
TPE3 (Product brochure)
Product Brochures · English 7,7 MB -
TPE2, TPE3 in cast iron (Environmental Product Declaration)
EPD · English 0,1 MB -
TPE2, TPE3 in stainless steel (Environmental Product Declaration)
EPD · English 0,1 MB -
TP, TPE, TPD, TPED (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,4 MB -
TP, TPE, TPD, TPED (Service Kit Catalogue)
Service · English 1,3 MB -
TPE2, TPE2 D, TPE3, TPE3 D (Impeller, neck ring, shaft, shaft seal)
Service · English 3,2 MB -
TPE2, TPE2 D, TPE3, TPE3 D (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
TPE2, TPE2 D, TPE3, TPE3 D (Service Kit Catalogue)
Service · English 0,4 MB -
TPE2/3 (D) Medium and Large (Service Instructions)
Service · English 15,0 MB -
TPE2/3 (D) Medium and Large (Service Kit Catalogue)
Service · English 3,6 MB -
TPE3, TPE3 D, Sensor (Service kit instructions)
Service · English 4,5 MB
