Specifiche tecniche
| Tipo pompa | TPE |
| Portata nominale (m³/h) | 97.76 m³/h |
| Prevalenza nominale (m) | 13.39 m |
| Indice di efficienza minima (MEI) | 0.45 |
| Potenza P2 (kW) | 5.5 kW |
| Fasi | 3 |
| Tensione (V) | 380-500 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 140 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 25 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 25 |
| Interasse (mm) | 670 mm |
| Materiale corpo pompa | Ductile iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | DAQF |
| Lunghezza (mm) | 670 mm |
| Altezza (mm) | 175 mm |
| Peso lordo | 235 kg |
| Peso netto | 206 kg |
| Codice motore | 93108542 |
| Codice EAN | 5715468495811 |

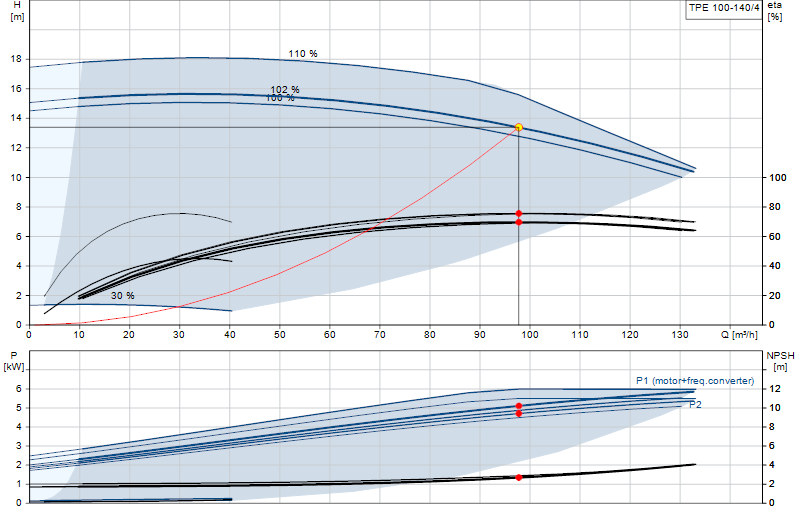

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
