Specifiche tecniche
| Tipo pompa | TP |
| Portata nominale (m³/h) | 68.5 m³/h |
| Prevalenza nominale (m) | 13.1 m |
| Indice di efficienza minima (MEI) | 0.54 |
| Potenza P2 (kW) | 4 kW |
| Fasi | 3 |
| Tensione (V) | 220-240D/380-415Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 Dust/Jetting |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 16 |
| Interasse (mm) | 500 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BAQE |
| Lunghezza (mm) | 500 mm |
| Altezza (mm) | 140 mm |
| Peso lordo | 233 kg |
| Peso netto | 197 kg |
| Codice motore | 87322301 |
| Codice EAN | 5700396979434 |
Curva di prestazione
Documenti e datasheet
-
TP series 100 & 200 (Service instructions)
Service · English 0,7 MB -
TP Series 400 (Service Instructions)
Service · English 0,9 MB -
TP, TPD, TPE, TPED Series 300 (Service Instructions)
Service · English 1,1 MB -
TP, TPD, TPE, TPED, TPE2, TPE2 D, TPE3, TPE3 D, In-line circulator pumps (Data booklet)
Data booklets · English 29,6 MB -
NB, NBG, NK, NKG, TP, TPD, ATEX-approved pumps (Safety instructions)
Installation & operating instructions · English 0,8 MB -
NB, NBG, TP, TPD, ATEX-approved pumps (Installation and operating instructions)
Installation & operating instructions · English 1,4 MB -
TP (Series 400) (Installation and operating instructions)
Installation & operating instructions · English 6,8 MB -
TP, TPD (GB version) (Installation and operating instructions)
Installation & operating instructions · English 3,3 MB -
TP, TPD (I & O instructions)
Installation & operating instructions · English 1,5 MB -
TP, TPD (Safety instructions)
Installation & operating instructions · English 5,2 MB -
TPE2 (D),TPE3 (D) (Installation and operating instructions)
Installation & operating instructions · English 6,6 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
TP/TPE (Product brochure)
Product Brochures · English 3,8 MB -
TP, TPE, TPD, TPED (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,4 MB -
TP, TPE, TPD, TPED (Service Kit Catalogue)
Service · English 1,3 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 96108977 (portata e prevalenza equivalenti), disponibili a catalogo.
Prodotti correlati

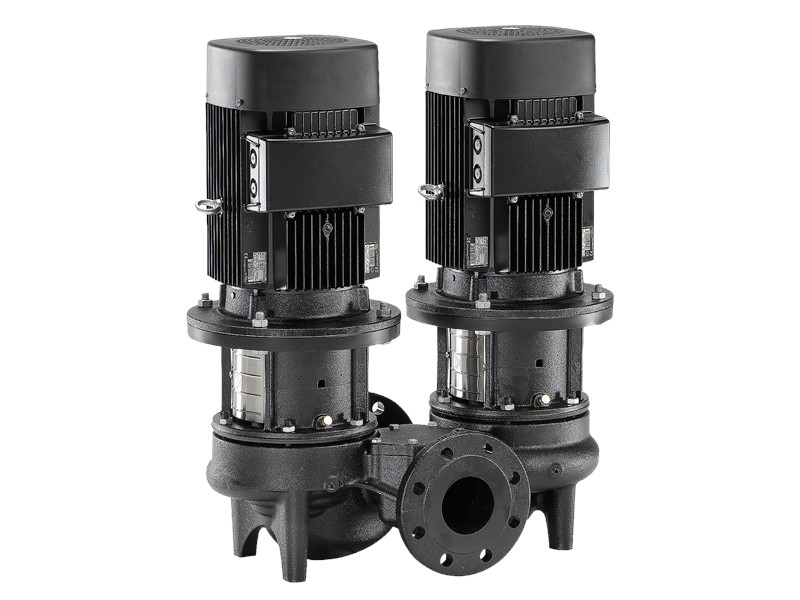

Grundfos 96108977
