Specifiche tecniche
| Tipo pompa | TP |
| Portata nominale (m³/h) | 29.8 m³/h |
| Prevalenza nominale (m) | 10.6 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 1.5 kW |
| Fasi | 3 |
| Tensione (V) | 200-220D/346-380Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 Dust/Jetting |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Pressione max di esercizio | 14 bar |
| Tipo di attacco | JIS |
| Pressione nominale attacco | 10K |
| Interasse (mm) | 475 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BAQE |
| Lunghezza (mm) | 475 mm |
| Altezza (mm) | 125 mm |
| Peso lordo | 89 kg |
| Peso netto | 70.6 kg |
| Codice motore | 98604324 |
| Codice EAN | 5700396385570 |

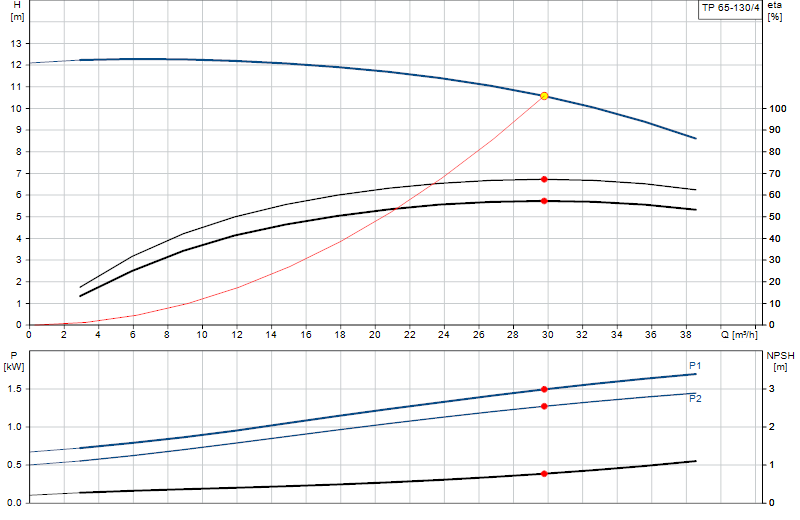

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
