Specifiche tecniche
| Tipo pompa | TP |
| Portata nominale (m³/h) | 3.72 m³/h |
| Prevalenza nominale (m) | 2.7 m |
| Potenza P2 (kW) | 0.12 kW |
| Fasi | 1 |
| Tensione (V) | 220-230 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 Dust/Jetting |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 10 bar |
| Tipo di attacco | G |
| Dimensione attacco | 1 1/2 inch |
| Pressione nominale attacco | PN 10 |
| Interasse (mm) | 180 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Composite |
| Tenuta meccanica | BQBE |
| Lunghezza (mm) | 180 mm |
| Altezza (mm) | 46 mm |
| Peso lordo | 12.7 kg |
| Peso netto | 10.7 kg |
| Codice motore | 92613975 |
| Codice EAN | 5712608951978 |

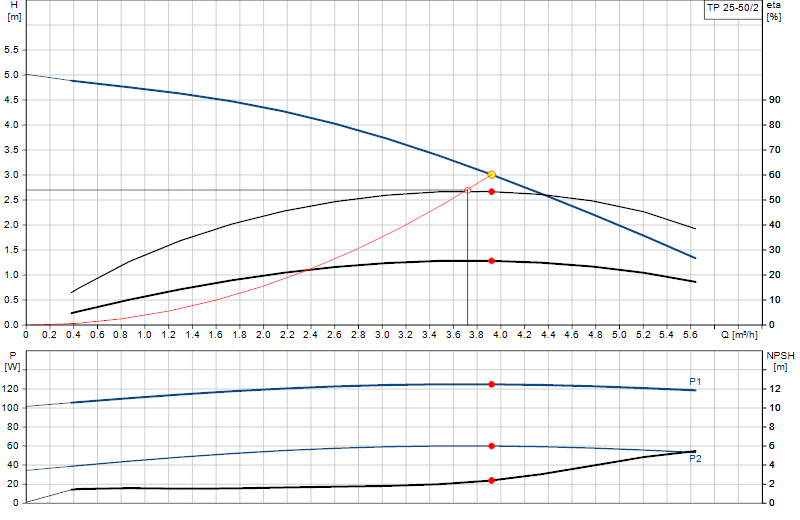

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
