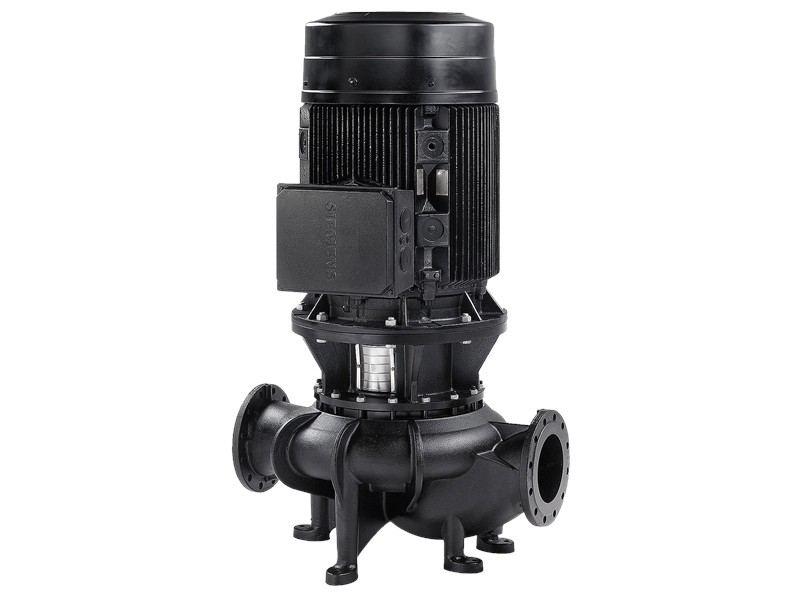

Specifiche tecniche
| Tipo pompa | TP |
| Portata nominale (m³/h) | 481 m³/h |
| Prevalenza nominale (m) | 41.95 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 75 kW |
| Fasi | 3 |
| Tensione (V) | 380-400D/660-690Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 (Protect. water jets/dust) |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -25 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 16 |
| Interasse (mm) | 1000 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BQQE |
| Lunghezza (mm) | 1000 mm |
| Altezza (mm) | 295 mm |
| Peso lordo | 1160 kg |
| Peso netto | 1030 kg |
| Codice motore | 93309397 |
| Codice EAN | 5715471298881 |

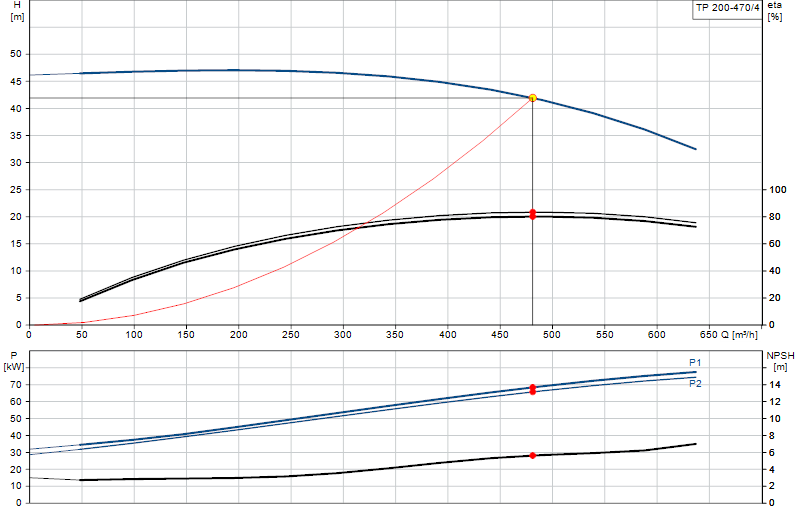

Curva di prestazione
