Specifiche tecniche
| Tipo pompa | TP |
| Portata nominale (m³/h) | 272.8 m³/h |
| Prevalenza nominale (m) | 18.26 m |
| Indice di efficienza minima (MEI) | 0.66 |
| Potenza P2 (kW) | 18.5 kW |
| Fasi | 3 |
| Tensione (V) | 200DD/400D V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 (Protect. water jets/dust) |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 140 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Pressione max di esercizio | 25 bar |
| Tipo di attacco | JIS |
| Pressione nominale attacco | 20K |
| Interasse (mm) | 800 mm |
| Materiale corpo pompa | Ductile iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | DAQF |
| Lunghezza (mm) | 800 mm |
| Altezza (mm) | 215 mm |
| Peso lordo | 440 kg |
| Peso netto | 408 kg |
| Codice motore | 98787216 |
| Codice EAN | 5712603838946 |

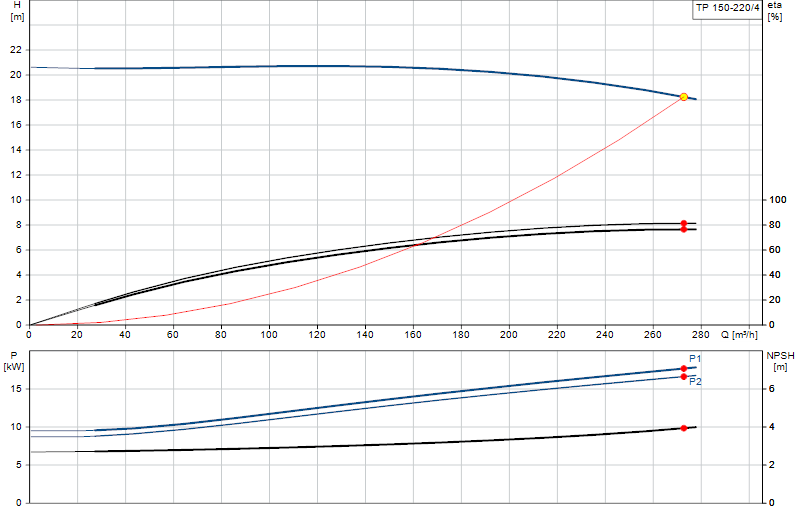

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
