Specifiche tecniche
| Prevalenza nominale (m) | 0.56 m |
| Prevalenza max (m) | 0.56 m |
| Fasi | 3 |
| Tensione (V) | 400-415 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | H |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 5 °C |
| Peso netto | 109 kg |
| Codice EAN | 5712601511773 |

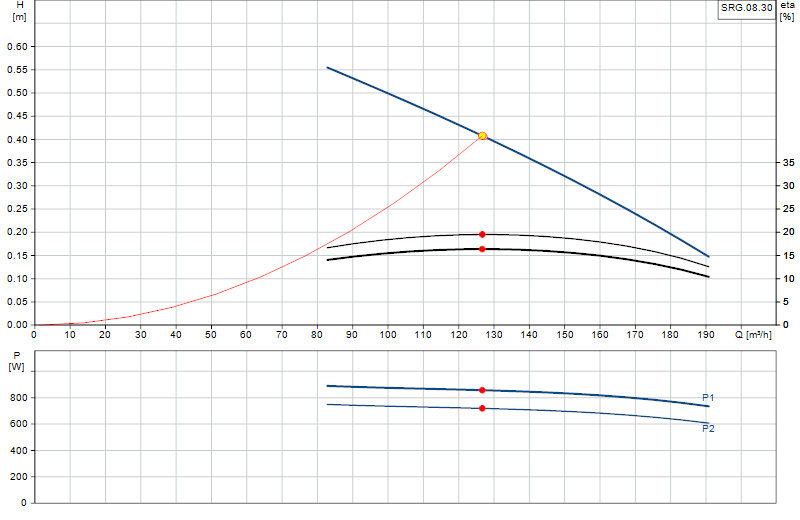

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
SRG
Service · English 1,8 MB -
GATE PUMP PUMPING STATION (Data booklet)
Data booklets · English 1,5 MB -
SRG, Submersible recirculation pumps, 50 Hz (Data booklet)
Data booklets · English 5,1 MB -
Cranes for mixers, flowmakers and recirculation pumps (Correction sheet)
Installation & operating instructions · English 0,3 MB -
Cranes for mixers, flowmakers and recirculation pumps (Safety instructions)
Installation & operating instructions · English 1,4 MB -
Cranes for SMD, SMG, SFG, SRG, AMD, AMG, AFG and SRP (Multi language) (Installation and operating instructions)
Installation & operating instructions · English 2,6 MB -
Safety Instructions for SMD, SMG, SFG, SRG, AMD, AMG, and AFG (Correction Sheet)
Installation & operating instructions · English 0,1 MB -
SMD, SMG, SFG I&O and IOS, and AMG, AFG (50Hz DIN) I&O
Installation & operating instructions · English 0,2 MB -
SRG (Correction sheet)
Installation & operating instructions · English 0,2 MB -
SRG (Multi language) (Installation and operating instructions)
Installation & operating instructions · English 1,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
SMD, SMG, SFG, SRG (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SMD, SMG, SFG, SRG (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SRG (Service Kit Catalogue)
Service · English 1,3 MB
