Specifiche tecniche
| Numero di stadi | 3 |
| Fasi | 1 |
| Tensione (V) | 200-240 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Temperatura liquido max (°C) | 35 °C |
| Temperatura liquido min (°C) | 0 °C |
| Pressione max di esercizio | 15 bar |
| Materiale girante | Composite |
| Peso lordo | 5.24 kg |
| Peso netto | 4.52 kg |
| Approvazioni | CE,PCBC,RCM,EAC,CN Rohs Exempt |
| Codice motore | 96160854 |
| Codice EAN | 5700396502557 |

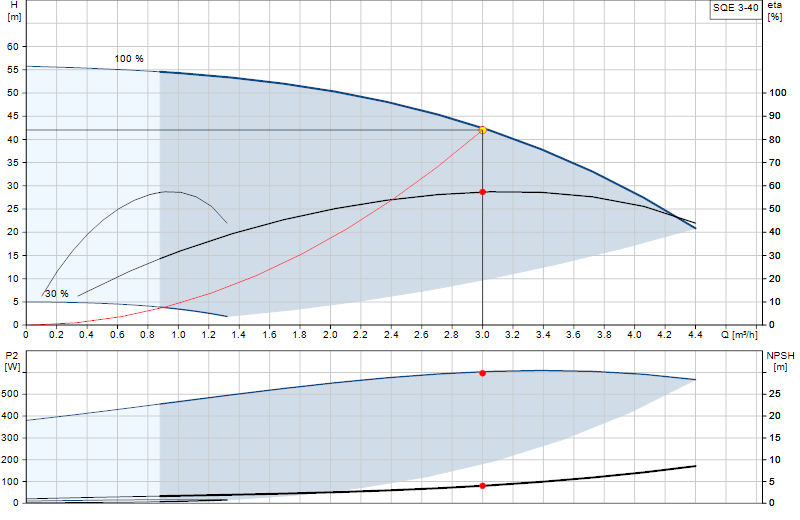

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
SQ, SQE, SQ-N Model B, MS 3, MSE 3 Model B (Service Instructions)
Service · English 0,6 MB -
SQ, SQE, SQ-N, MS 3 MSE 3, Model A (Service Instruction)
Service · English 0,3 MB -
SQ, SQE, SQE-NE - submersible pumps (Data booklet)
Data booklets · English 19,0 MB -
SQ, SQE (I & O instructions)
Installation & operating instructions · English 0,7 MB -
SQ, SQE, SQFlex (Safety instructions)
Installation & operating instructions · English 1,1 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DOMESTIC COLD WATER FOR PRESSURE BOOSTING (Product brochure)
Product Brochures · English 0,8 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
SQ, SQE, (Service Kit Catalogue)
Service · English 0,3 MB
