SQE 1-50 N Grundfos

Grundfos

SQE 1-50 N

Codice: 96160437 EAN: 5700398875413

Richiesta offerta

Specifiche tecniche

Numero di stadi	3
Fasi	1
Tensione (V)	200-240 V
Frequenza (Hz)	50 Hz
Grado di protezione	IP68
Temperatura liquido max (°C)	35 °C
Temperatura liquido min (°C)	0 °C
Pressione max di esercizio	15 bar
Materiale girante	Composite
Peso lordo	5.5 kg
Peso netto	4.8 kg
Approvazioni	CE,PCBC,RCM,EAC,CN Rohs Exempt
Codice motore	96195294
Codice EAN	5700398875413

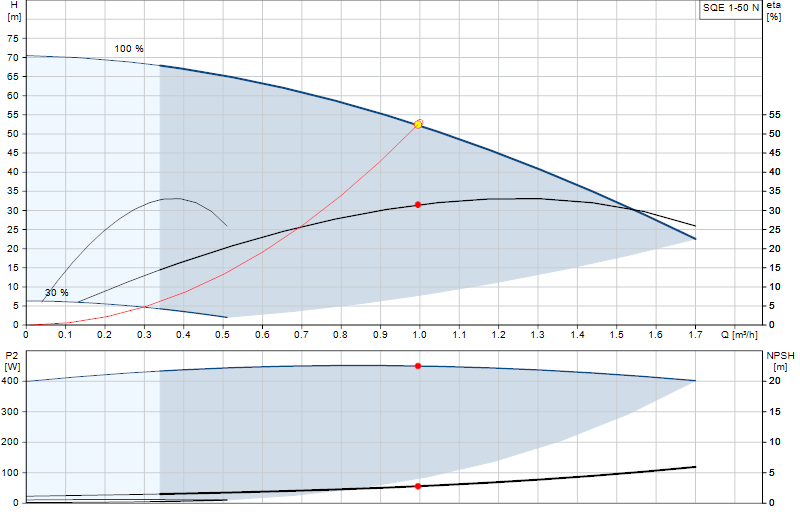

Curva di prestazione

Curva di prestazione SQE 1-50 N

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

SQ, SQE, SQ-N Model B, MS 3, MSE 3 Model B (Service Instructions)
Service · English 0,6 MB
SQ, SQE, SQ-N, MS 3 MSE 3, Model A (Service Instruction)
Service · English 0,3 MB
SQ, SQE, SQE-NE - submersible pumps (Data booklet)
Data booklets · English 19,0 MB
SQ, SQE (I & O instructions)
Installation & operating instructions · English 0,7 MB
SQ, SQE, SQFlex (Safety instructions)
Installation & operating instructions · English 1,1 MB
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB
DOMESTIC COLD WATER FOR PRESSURE BOOSTING (Product brochure)
Product Brochures · English 0,8 MB
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB
SQ, SQE, (Service Kit Catalogue)
Service · English 0,3 MB
