Specifiche tecniche
| Tipo pompa | SPK |
| Potenza P2 (kW) | 0.12 kW |
| Fasi | 3 |
| Tensione (V) | 200-230D/346-400Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP54 |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Materiale corpo pompa | Cast iron |
| Tenuta meccanica | AUUV |
| Peso lordo | 11.3 kg |
| Peso netto | 10 kg |
| Approvazioni | CE,EAC,UKCA |
| Codice motore | 81621312 |
| Codice EAN | 5700391743412 |

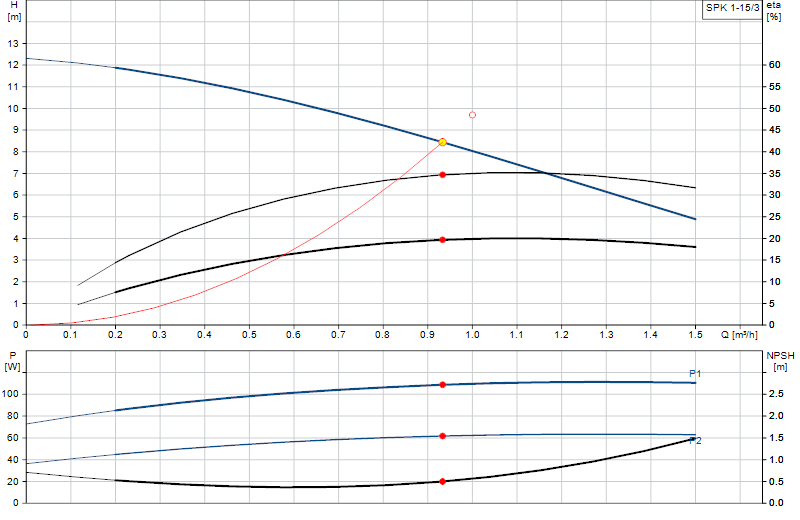

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
