Specifiche tecniche
| Tipo pompa | SP46 |
| Numero di stadi | 23 |
| Indice di efficienza minima (MEI) | 0.40 |
| Potenza P2 (kW) | 37 kW |
| Fasi | 3 |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Temperatura liquido max (°C) | 50 °C |
| Temperatura liquido min (°C) | -15 °C |
| Pressione max di esercizio | 60 bar |
| Tipo di attacco | Rp |
| Dimensione attacco | 4 inch |
| Materiale girante | Stainless steel |
| Peso lordo | 235 kg |
| Peso netto | 180 kg |
| Approvazioni | CE,EAC,UKCA,SEPRO,MOROCCO |
| Codice motore | 96879420 |
| Codice EAN | 5700395905632 |

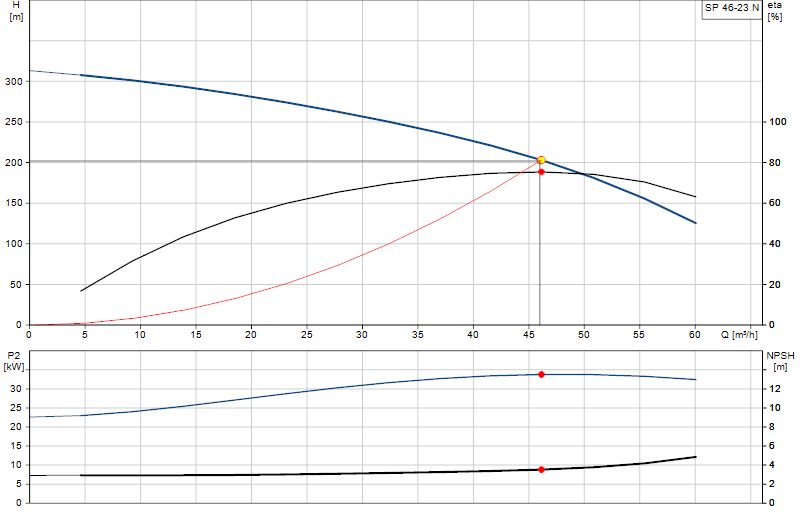

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
