Specifiche tecniche
| Tipo pompa | SP18 |
| Numero di stadi | 58 |
| Indice di efficienza minima (MEI) | 0.70 |
| Frequenza (Hz) | 50 Hz |
| Temperatura liquido max (°C) | 60 °C |
| Temperatura liquido min (°C) | -15 °C |
| Pressione max di esercizio | 60 bar |
| Tipo di attacco | R |
| Dimensione attacco | 3 inch |
| Materiale girante | Stainless steel |
| Peso lordo | 174 kg |
| Peso netto | 120 kg |
| Approvazioni | CE,EAC,UKCA,SEPRO,MOROCCO |
| Codice EAN | 5715121944977 |

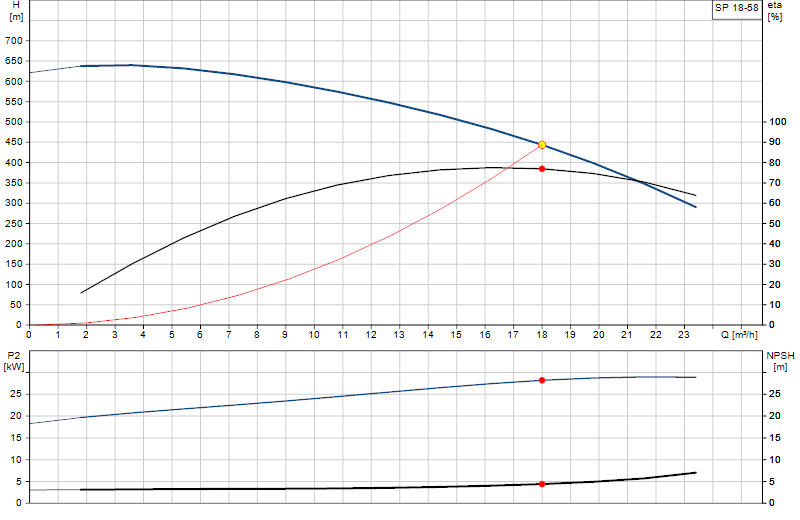

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
