Specifiche tecniche
| Tipo pompa | SP160 |
| Numero di stadi | 1 |
| Potenza P2 (kW) | 9.2 kW |
| Fasi | 3 |
| Tensione (V) | 500-525 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | -15 °C |
| Pressione max di esercizio | 60 bar |
| Tipo di attacco | Rp |
| Dimensione attacco | 6 inch |
| Materiale girante | Stainless steel |
| Peso lordo | 103 kg |
| Peso netto | 78.6 kg |
| Approvazioni | CE,EAC,UKCA,SEPRO,MOROCCO |
| Codice motore | 78185513 |
| Codice EAN | 5700394806909 |

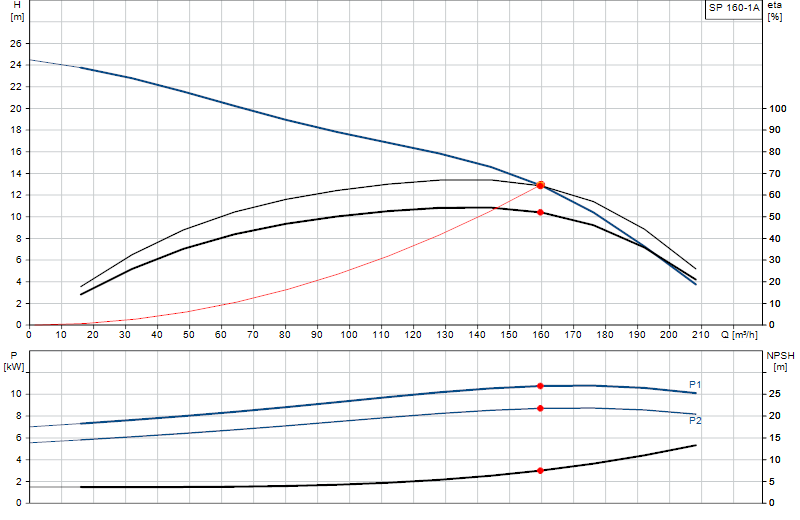

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
