Specifiche tecniche
| Tipo pompa | SP125 |
| Numero di stadi | 11 |
| Potenza P2 (kW) | 110 kW |
| Fasi | 3 |
| Tensione (V) | 380-400-415 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | -15 °C |
| Pressione max di esercizio | 60 bar |
| Tipo di attacco | Rp |
| Dimensione attacco | 6 inch |
| Materiale girante | Stainless steel |
| Peso lordo | 523 kg |
| Peso netto | 442 kg |
| Approvazioni | CE,EAC,UKCA,SEPRO,MOROCCO |
| Codice motore | 96539781 |
| Codice EAN | 5700837648585 |

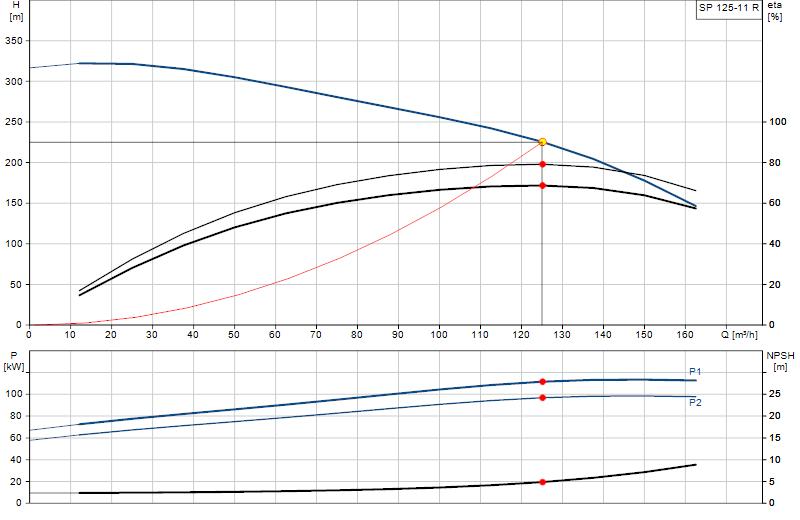

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
SP 11A - SP 14A (Service Instructions)
Service · English 0,2 MB -
SP 17 - Model B
Service · English 1,3 MB -
SP 1A - SP 5A (Service Instructions)
Service · English 0,2 MB -
SP 30 - Model B
Service · English 1,4 MB -
SP 46/60, model B
Service · English 9,9 MB -
SP 7 / 9 / 11 / 14 (Service instruction)
Service · English 1,3 MB -
SP 8A (Service Instructions)
Service · English 0,2 MB -
SP ENGINEERING MANUAL (System & Concept brochure)
System & Concept brochures · English 14,9 MB -
SP/SPE 18, SP/SPE 32 (Service instructions)
Service · English 44,1 MB -
MS6000 (Data booklet)
Data booklets · English 16,5 MB -
SP A, SP - submersible pumps, motors and accessories (Data booklet)
Data booklets · English 51,5 MB -
SP accessories (Data booklet)
Data booklets · English 42,2 MB -
SP (I & O instructions)
Installation & operating instructions · English 7,3 MB -
SP (Safety instructions)
Installation & operating instructions · English 6,4 MB -
Cathodic protection (Quick guide)
Quick Guides · English 1,3 MB -
Flow Sleeves (Quick Guide)
Quick Guides · English 2,1 MB -
Pt100, Pt1000 (Quick Guide)
Quick Guides · English 9,0 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
DESIGN TIPS FOR FLOOD CONTROL PUMPING STATIONS (Product brochure)
Product Brochures · English 1,2 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
OPTIMISED FOR UNDERGROUND PERFORMANCE (SP) (Product brochure)
Product Brochures · English 1,6 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
PUMPS FOR BIOETHANOL AND BIODIESEL (Product brochure)
Product Brochures · English 1,1 MB -
SOLAR-POWERED IRRIGATION AND WATERING (Product brochure)
Product Brochures · English 1,7 MB -
SOLAR-POWERED WATER SUPPLY (Product brochure)
Product Brochures · English 2,8 MB -
SP Exceeding current standards of excellence (Product brochure)
Product Brochures · English 3,9 MB -
SP Installation quick guide (Product brochure)
Product Brochures · English 1,8 MB -
SP Pump performance measuring (Product brochure)
Product Brochures · English 1,8 MB -
SUBMERSIBLE SYSTEMS - STRENGTH, PERFORMANCE AND EFFICIENCY (Product brochure)
Product Brochures · English 2,7 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
SP (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,2 MB -
SP 17, 30, 46, 60, 77, 95, 125, 160, 215 (Illustrated instruction)
Service · English 1,2 MB -
SP 18 (Service Kit Catalogue)
Service · English 1,3 MB -
SP 32 (Service Kit Catalogue)
Service · English 1,3 MB -
SP, SP A (Service kit Catalogue)
Service · English 3,0 MB
