Specifiche tecniche
| Prevalenza max (m) | 14.4 m |
| Fasi | 1 |
| Tensione (V) | 230 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 6 bar |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Peso lordo | 45.2 kg |
| Peso netto | 41.1 kg |
| Approvazioni | PA-I |
| Codice EAN | 5700394850650 |

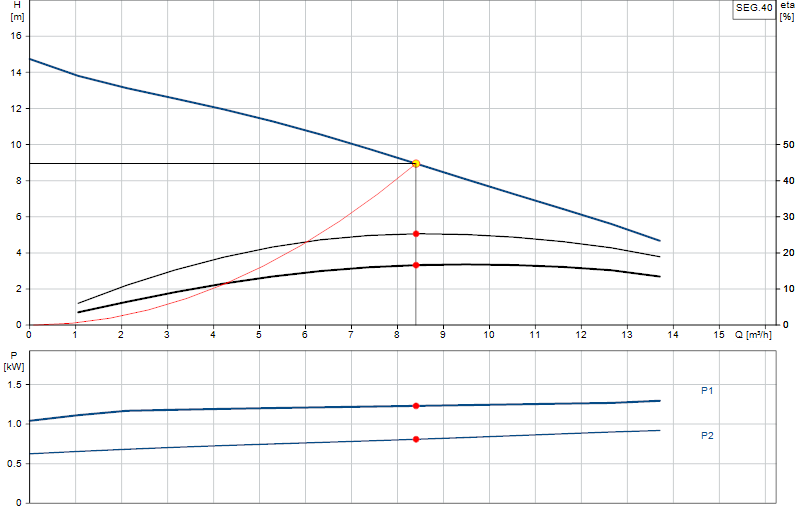

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
SEG (0.9 - 4.0 kW) (Service instructions)
Service · English 3,6 MB -
SEG AUTOADAPT (Service Instruction)
Service · English 4,5 MB -
SEG and SEG AUTOADAPT (0.9 to 4.0 kW) (Data booklet)
Data booklets · English 16,5 MB -
SEG (Installation and operating instructions)
Installation & operating instructions · English 3,9 MB -
SEG AUTOADAPT, 0.9 - 4.0 kW (Installation and operating instructions)
Installation & operating instructions · English 1,8 MB -
SEG AUTOADAPT, 0.9 - 4.0 kW (Safety instructions)
Installation & operating instructions · English 1,3 MB -
SEG, 0.9 - 4.0 kW (Safety instructions)
Installation & operating instructions · English 4,1 MB -
SEG, DP, EF, SL1/SLV AUTOADAPT fuse box, type ADC
Installation & operating instructions · English 1,5 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS SEG AUTOADAPT (Product brochure)
Product Brochures · English 7,8 MB -
GRUNDFOS SEG RANGE, Grinder pumps 0.9 - 4 kW (Product brochure)
Product Brochures · English 0,8 MB -
GRUNDFOS SEG SUBMERSIBLE GRINDER PUMPS (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB -
INCREASE OPERATIONAL RELIABILITY IN YOUR NETWORK (Product brochure)
Product Brochures · English 2,9 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
SEG, DP, EF, AND SL (AUTOadapt ranges) (Product brochure)
Product Brochures · English 5,0 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
Modbus for SEG AUTOADAPT (Functional profile)
Functional profiles · English 3,7 MB -
DP, EF, SL1, SLV and SEG AUTOADAPT (Electronic unit) (Service kit instruction)
Service · English 4,7 MB -
DP, EF, SL1, SLV and SEG AUTOADAPT, Level sensor (Service kit instruction)
Service · English 3,5 MB -
Fitting instruction - guide rail bracket (Service kit instruction)
Service · English 0,4 MB -
SEG (Service Kit Catalogue)
Service · English 1,3 MB -
SEG Autoadapt (Service Kit Catalogue)
Service · English 0,5 MB
