Specifiche tecniche
| Portata nominale (m³/h) | 92.6 l/s |
| Prevalenza nominale (m) | 27.64 m |
| Fasi | 3 |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | H |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 10 bar |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Peso lordo | 989 kg |
| Peso netto | 890 kg |
| Approvazioni | CE,EAC,RCM,UKCA,MOROCCO |
| Codice EAN | 5715467593457 |

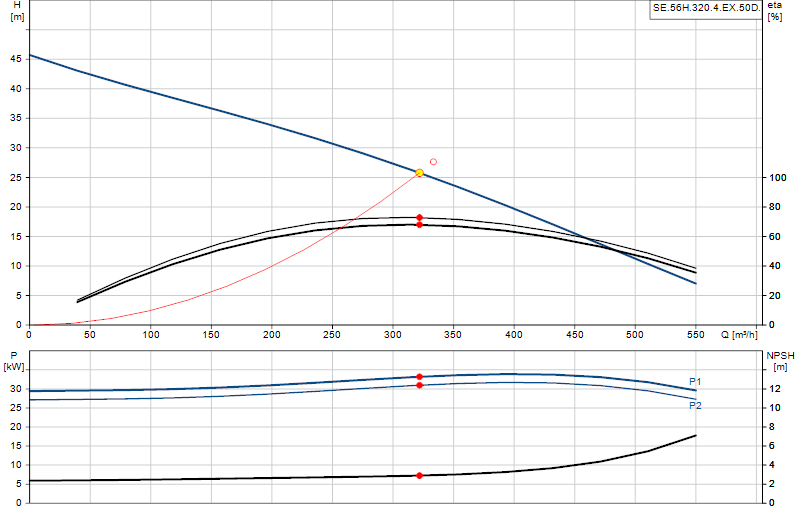

Curva di prestazione
Documenti e datasheet
-
SE and SL Pumps, Range 56, 25-63 kW, 50 Hz
Data booklets · English 14,1 MB -
Correction sheet - SE/SL 18-63 kW
Installation & operating instructions · English 0,2 MB -
SE and SL pumps, Range 56 (Correction Sheet)
Installation & operating instructions · English 0,1 MB -
SL pumps, range 56, 18-41 kW (I & O instructions)
Installation & operating instructions · English 4,3 MB -
SL pumps, range 56, 18-41 kW (Safety instructions and other important information)
Installation & operating instructions · English 2,8 MB -
SE Frame 56, Horizontal Stand (Quick guide)
Quick Guides · English 2,8 MB -
Grundfos SE/SL - Submersible and dry-installed wastewater pumps
Product Brochures · English 4,4 MB -
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB -
SE and SL pumps, range 56 (Service instructions)
Service · English 11,6 MB -
SE/SL Fr56 18-63kW (Recommended spare parts)
Service · English 2,0 MB -
SE/SL Frame 56 (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SE/SL Frame 56 (Service Kit Catalogue)
Service · English 1,6 MB -
SE/SL Range 56, Dry running switch replacement (Service kit instructions)
Service · English 4,2 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 93087140 (portata e prevalenza equivalenti), disponibili a catalogo.
