SE.56H.240.4.EX.51D. Grundfos

Grundfos

SE.56H.240.4.EX.51D.

Codice: 93087102 EAN: 5715467592702

Tipo SE/SL Range 56 (18-63 kW)

Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)	77.1 l/s
Prevalenza nominale (m)	24.9 m
Fasi	3
Frequenza (Hz)	50 Hz
Grado di protezione	IP68
Classe di isolamento	H
Temperatura liquido max (°C)	40 °C
Temperatura liquido min (°C)	0 °C
Temperatura ambiente max (°C)	40 °C
Pressione max di esercizio	10 bar
Materiale corpo pompa	Cast iron
Materiale girante	Cast iron
Peso lordo	976 kg
Peso netto	877 kg
Approvazioni	CE,EAC,RCM,UKCA,MOROCCO
Codice EAN	5715467592702

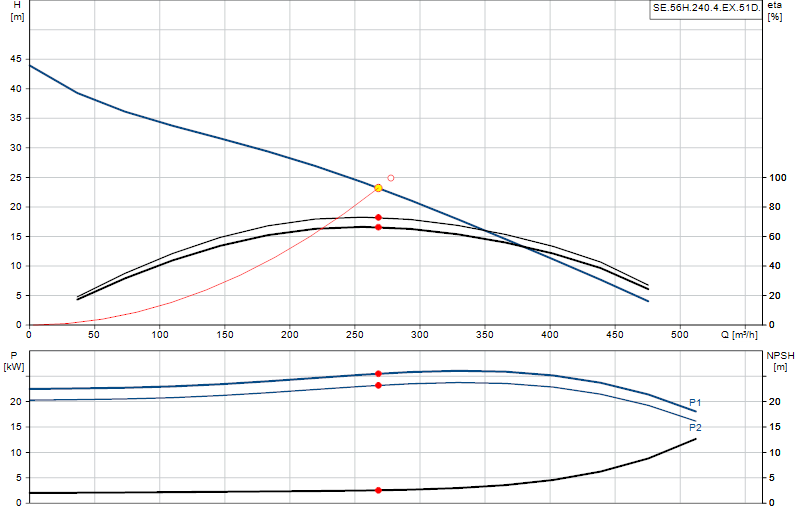

Curva di prestazione

Curva di prestazione SE.56H.240.4.EX.51D.

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

SE and SL Pumps, Range 56, 25-63 kW, 50 Hz
Data booklets · English 14,1 MB
Correction sheet - SE/SL 18-63 kW
Installation & operating instructions · English 0,2 MB
SE and SL pumps, Range 56 (Correction Sheet)
Installation & operating instructions · English 0,1 MB
SL pumps, range 56, 18-41 kW (I & O instructions)
Installation & operating instructions · English 4,3 MB
SL pumps, range 56, 18-41 kW (Safety instructions and other important information)
Installation & operating instructions · English 2,8 MB
SE Frame 56, Horizontal Stand (Quick guide)
Quick Guides · English 2,8 MB
Grundfos SE/SL - Submersible and dry-installed wastewater pumps
Product Brochures · English 4,4 MB
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB
SE and SL pumps, range 56 (Service instructions)
Service · English 11,6 MB
SE/SL Fr56 18-63kW (Recommended spare parts)
Service · English 2,0 MB
SE/SL Frame 56 (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB
SE/SL Frame 56 (Service Kit Catalogue)
Service · English 1,6 MB
SE/SL Range 56, Dry running switch replacement (Service kit instructions)
Service · English 4,2 MB
