Specifiche tecniche
| Prevalenza max (m) | 27.4 m |
| Fasi | 3 |
| Tensione nominale | 380-415/660-690 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | H |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 10 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 8 bar |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Peso lordo | 367 kg |
| Peso netto | 339 kg |
| Approvazioni | CE,EAC,RCM |
| Codice EAN | 5713835824004 |

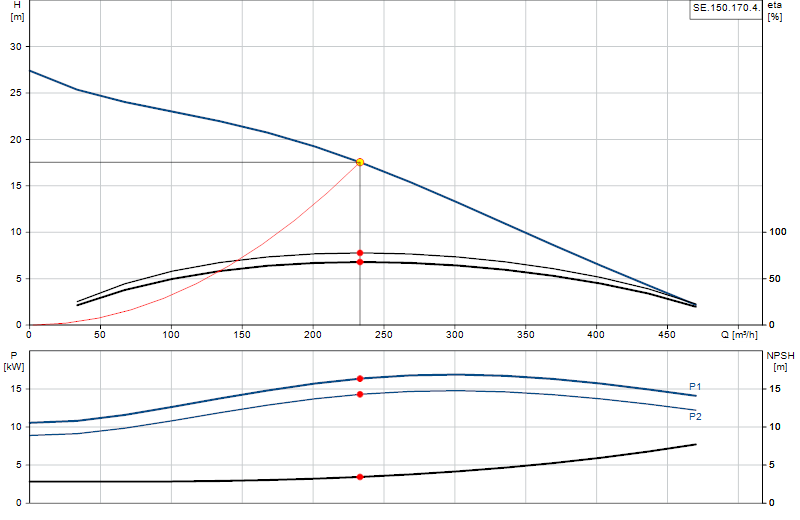

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
