Specifiche tecniche
| Prevalenza max (m) | 11 m |
| Fasi | 3 |
| Tensione (V) | 415/719 V |
| Frequenza (Hz) | 50 Hz |
| Corrente nominale max (A) | 195 A |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Ductile iron |
| Materiale girante | Ductile iron |
| Peso lordo | 2810 kg |
| Peso netto | 2690 kg |
| Codice EAN | 5700312033103 |

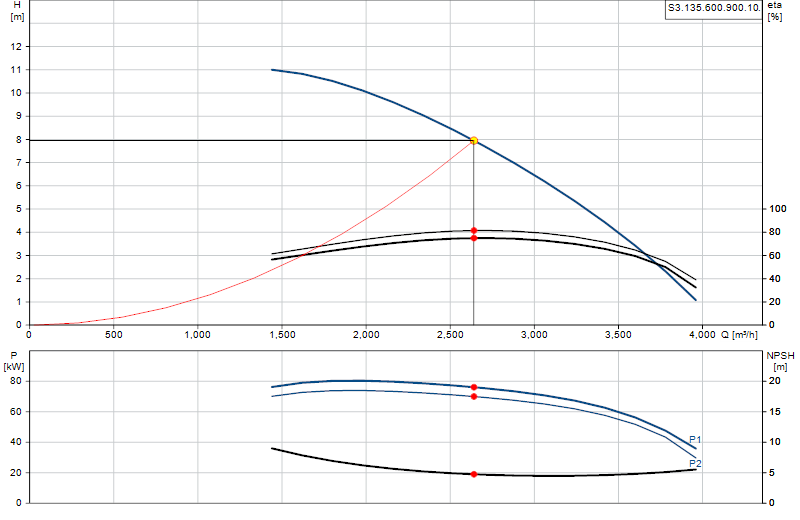

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
