Specifiche tecniche
| Prevalenza max (m) | 38.7 m |
| Fasi | 3 |
| Tensione (V) | 415 V |
| Frequenza (Hz) | 50 Hz |
| Corrente nominale max (A) | 129 A |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Ductile iron |
| Peso lordo | 1060 kg |
| Peso netto | 890 kg |
| Codice EAN | 5700310249353 |

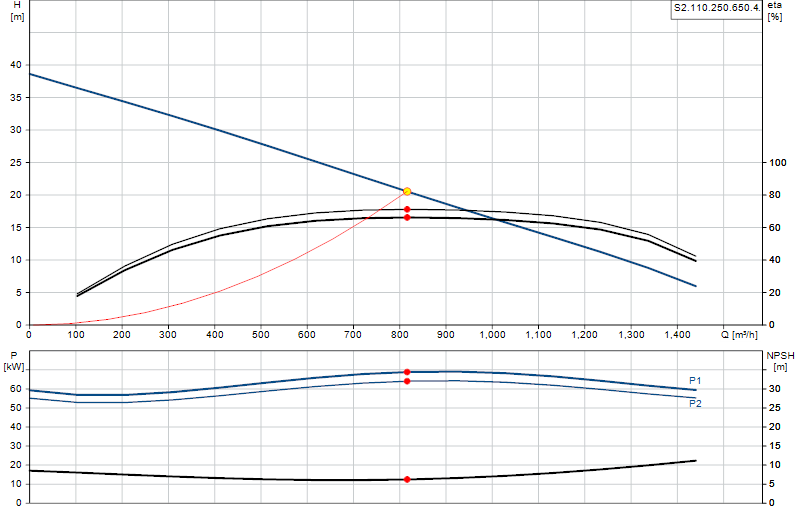

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
Grundfos pumps manage flooding in tech parks, India version (Product brochure)
Case histories · English 1,9 MB -
S-Pumps, ranges 66 and 70 (Service instructions)
Service · English 7,2 MB -
S pumps, range 66, 22 to 65 KW (Data booklet)
Data booklets · English 11,0 MB -
Cable entry, S pumps (Data sheet)
Data sheets · English 0,4 MB -
S pump, ranges 50-70, S1, S2, S3, SA, SV - 7,5 - 155 kW (GB + CN) (Installation and operating instructions)
Installation & operating instructions · English 5,0 MB -
S pumps, ranges 50-70 (Safety instructions)
Installation & operating instructions · English 2,4 MB -
S pumps, ranges 50-70, S1, S2, S3, ST, SV, 7.5 - 155 kW (I & O instructions)
Installation & operating instructions · English 4,8 MB -
S pumps, ranges 72-74-78, S2, S3, S4, ST, 55 - 520 kW (I & O instructions)
Installation & operating instructions · English 6,9 MB -
GRUNDFOS S PUMP RANGES 34-78 (Product brochure)
Product Brochures · English 1,4 MB -
Grundfos S range - cast-iron submersible pumps 5.5 - 520 kW (Product brochure)
Product Brochures · English 0,6 MB -
GRUNDFOS SL, SE, S PUMP VARIANTS, 1.1 - 520 kW (Product brochure)
Product Brochures · English 0,8 MB -
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB -
GRUNDFOS WATER UTILITY (Flood Control) (Product brochure)
Product Brochures · English 6,9 MB -
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Product Brochures · English 8,2 MB -
Grundfos Whitepaper, wastewater pumps (Product brochure)
Product Brochures · English 0,6 MB -
Harsh environment wastewater pumps
Product Brochures · English 2,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
Fitting instruction - guide rail bracket (Service kit instruction)
Service · English 0,4 MB -
S pump, range 50-78, Cable replacement (Service kit instructions)
Service · English 3,0 MB -
S pumps (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
S pumps (Service Kit Catalogue)
Service · English 8,9 MB
