NKGE 100-65-200/199 Grundfos

Grundfos

NKGE 100-65-200/199

Codice: 92897025 EAN: 5715121216449

Tipo NKGE, SuperVortex impeller

Richiesta offerta

Specifiche tecniche

Tipo pompa	NKGE
Portata nominale (m³/h)	38.6 m³/h
Prevalenza nominale (m)	8.4 m
Potenza P2 (kW)	2.2 kW
Fasi	3
Tensione (V)	380-500 V
Frequenza (Hz)	50 Hz
Grado di protezione	IP55
Convertitore di frequenza	Built-in
Temperatura liquido max (°C)	120 °C
Temperatura liquido min (°C)	-25 °C
Temperatura ambiente max (°C)	50 °C
Pressione max di esercizio	16 bar
Pressione nominale attacco	PN 16
Materiale corpo pompa	Cast iron
Materiale girante	Cast iron
Tenuta meccanica	BQQE
Peso lordo	203 kg
Peso netto	163 kg
Codice motore	93137616
Codice EAN	5715121216449

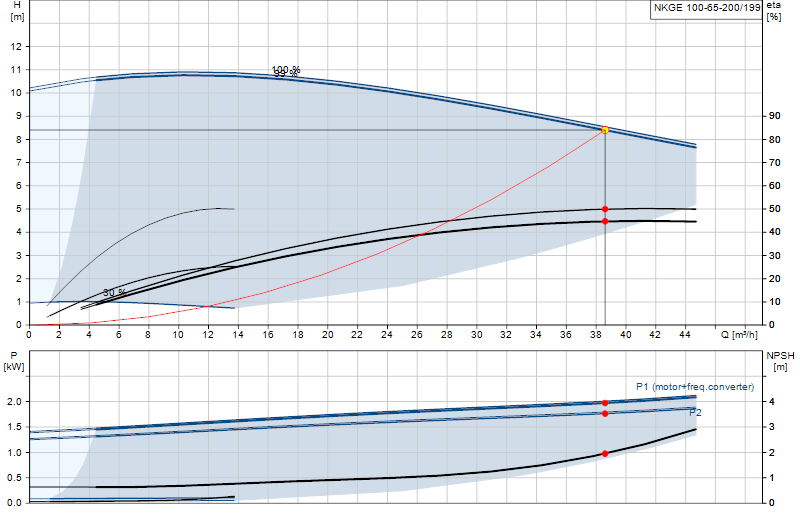

Curva di prestazione

Curva di prestazione NKGE 100-65-200/199

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

NK, NKE, NKG, NKGE (Service instructions)
Service · English 22,9 MB
NBG, NBGE, NKG, NKGE, 50 Hz (Data booklet)
Data booklets · English 40,1 MB
NK, NKG (Safety instructions)
Installation & operating instructions · English 5,6 MB
NK, NKG, Model B (I & O instructions)
Installation & operating instructions · English 13,6 MB
TPE, TPED Series 1000; NBE, NBGE, NKE, NKGE; TPE, TPED, NBE, NKE Series 2000 (I&O)
Installation & operating instructions · English 6,5 MB
TPE, TPED, NBE, NBGE, MTBE, NKE, NKGE, TPE, TPED, NBE, NKE Series 2000, - below 15 kW, 2-pole and 11 kW, 4-pole
Installation & operating instructions · English 4,8 MB
TPE, TPED; TPE2, TPE2 D, TPE3, TPE3 D; NBE, NBGE, NKE, NKGE; MTBE (Safety instructions)
Installation & operating instructions · English 1,8 MB
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB
NB, NBG, NK, NKG Coated solutions Service Instructions
Service · English 14,9 MB
NBG/E, NKG/E - Super Vortex impeller range – Range 1 (Service Kit Catalogue)
Service · English 8,5 MB
NK, NKE - R2 - (Service Kit Catalogue)
Service · English 6,6 MB

Varianti e codici alternativi

Confronta

NKGE 100-65-200/199

Grundfos NKGE 100-65-200/199 77.47 m³/h33.38 m15 kW

Alternative equivalenti

Pompe della stessa classe idraulica di 92897025 (portata e prevalenza equivalenti), disponibili a catalogo.

Confronta

NBGE 100-65-200/199

Grundfos NBGE 100-65-200/199 38.6 m³/h8.4 m2.2 kW

Confronta

NBG 100-65-200/199

Grundfos NBG 100-65-200/199 38.33 m³/h8.285 m2.2 kW

Confronta

NKG 100-65-200/199

Grundfos NKG 100-65-200/199 39 m³/h8.575 m2.2 kW

Confronta

NKE 65-180/172

Grundfos NKE 65-180/172 39.59 m³/h7.92 m1.1 kW

Confronta

NK 65-180/172

Grundfos NK 65-180/172 41.77 m³/h8.63 m1.5 kW

Confronta

TP 65-85/4

Grundfos TP 65-85/4 38.05 m³/h7.47 m1.1 kW

Confronta

TP 80-115/4

Grundfos TP 80-115/4 41.09 m³/h8.97 m1.5 kW

Confronta

NK 65-180/162

Grundfos NK 65-180/162 37.51 m³/h7.497 m1.1 kW
