NKG 50-32-200.1/172 Grundfos

Grundfos

NKG 50-32-200.1/172

Codice: 99118558 EAN: 5712607112899

Richiesta offerta

Specifiche tecniche

Tipo pompa	NKG
Portata nominale (m³/h)	18.04 m³/h
Prevalenza nominale (m)	27.51 m
Indice di efficienza minima (MEI)	0.70
Potenza P2 (kW)	3 kW
Fasi	3
Tensione (V)	220-240D/380-415Y V
Frequenza (Hz)	50 Hz
Grado di protezione	IP55 (Protect. water jets/dust)
Convertitore di frequenza	None
Temperatura liquido max (°C)	120 °C
Temperatura liquido min (°C)	0 °C
Temperatura ambiente max (°C)	60 °C
Pressione max di esercizio	16 bar
Pressione nominale attacco	PN 16
Materiale corpo pompa	Cast iron
Materiale girante	Cast iron
Tenuta meccanica	BAQE
Peso lordo	173 kg
Peso netto	133 kg
Codice motore	83N06110
Codice EAN	5712607112899

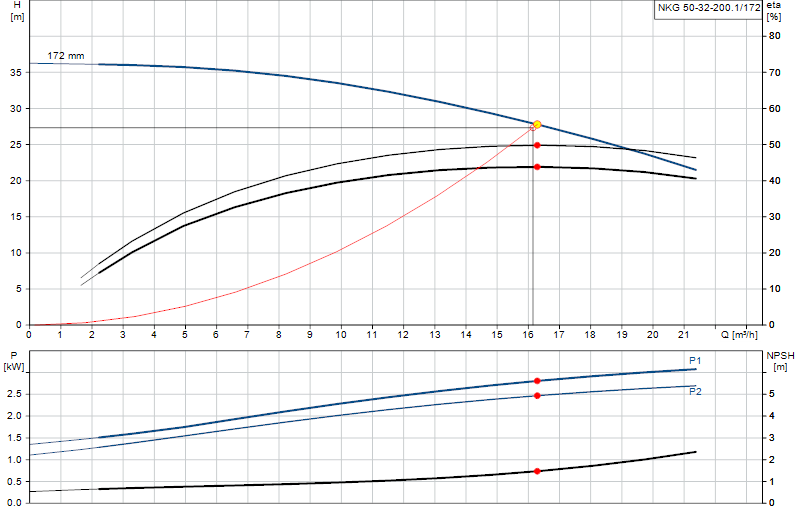

Curva di prestazione

Curva di prestazione NKG 50-32-200.1/172

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
