Specifiche tecniche
| Tipo pompa | NKE |
| Portata nominale (m³/h) | 35.8 m³/h |
| Prevalenza nominale (m) | 5.4 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 0.75 kW |
| Fasi | 3 |
| Tensione (V) | 380-500 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 16 bar |
| Pressione nominale attacco | PN 16 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BAQE |
| Peso lordo | 125 kg |
| Peso netto | 111 kg |
| Codice motore | 99305876 |
| Codice EAN | 5710629206800 |

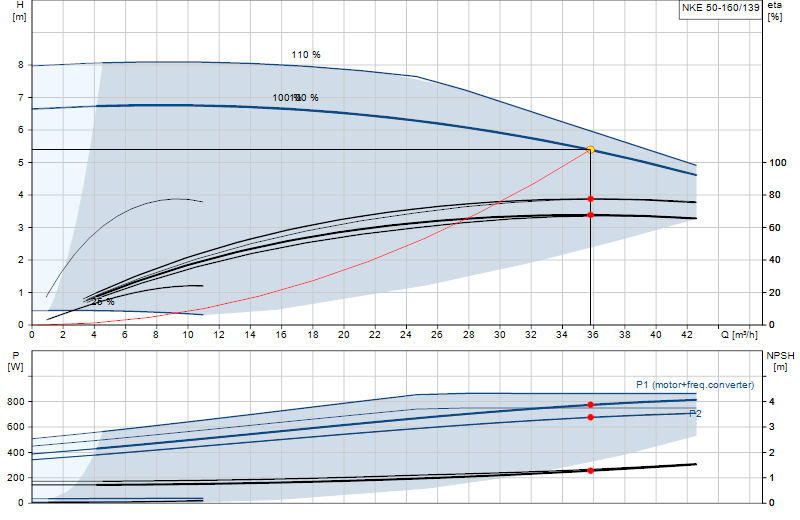

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
NK, NKE, NKG, NKGE (Service instructions)
Service · English 22,9 MB -
NB, NBE, NK, NKE, 50 Hz (Data booklet)
Data booklets · English 33,7 MB -
NB, NBG, NK, NKG, NBE, NBGE, NKE, NKGE, Custom-built pumps (Data booklet)
Data booklets · English 20,4 MB -
NK, NKE - 50 Hz APAC (Data booklet)
Data booklets · English 37,9 MB -
NK, NKE, 50Hz CHINA (Data booklet)
Data booklets · English 37,9 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
NB, NBG, NK, NKG, NBE, NBGE, NKE, NKGE (Key application data) (Data Sheet)
Data sheets · English 0,4 MB -
NBE, NBGE, NKE, NKGE, TPE Series 1000, TPE Series 2000, from 30 kW 2-pole and 18.5 kW 4-pole (I & O instructions)
Installation & operating instructions · English 27,7 MB -
NBE, NBGE, NKE, NKGE, TPE Series 1000, TPE Series 2000, from 30 kW 2-pole and 18.5 kW 4-pole (Safety instructions)
Installation & operating instructions · English 4,4 MB -
TPE, TPED Series 1000; NBE, NBGE, NKE, NKGE; TPE, TPED, NBE, NKE Series 2000 (I&O)
Installation & operating instructions · English 6,5 MB -
TPE, TPED, NBE, NBGE, MTBE, NKE, NKGE, TPE, TPED, NBE, NKE Series 2000, - below 15 kW, 2-pole and 11 kW, 4-pole
Installation & operating instructions · English 4,8 MB -
TPE, TPED, NKE, NKGE, NBE, NBGE (Below 3 kW) (Installation and operating instructions)
Installation & operating instructions · English 6,5 MB -
TPE, TPED, NKE, NKGE, NBE, NBGE, MTBE (From 3.0 kW, 2-Pole and from 1.5 kW, 4-Pole) (I/O)
Installation & operating instructions · English 4,3 MB -
TPE, TPED, NKE, NKGE, NBE, NBGE, MTBE, TPE, TPED Series 2000 (Safety instructions)
Installation & operating instructions · English 1,8 MB -
TPE, TPED; TPE2, TPE2 D, TPE3, TPE3 D; NBE, NBGE, NKE, NKGE; MTBE (Safety instructions)
Installation & operating instructions · English 1,8 MB -
TPE, NKE, NBE, TPED (Quick Guide)
Quick Guides · English 0,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
Coating solutions for Grundfos NB/NBG and NK/NKG pumps (Product brochure)
Product Brochures · English 1,4 MB -
Food application pumps - Nourish your business with Grundfos (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS MPC, Taking your pump system efficiency to new heights (Product brochure)
Product Brochures · English 1,0 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
NB/NBG/NK/NKG(E) RANGES (Product brochures)
Product Brochures · English 0,7 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
SOLAR-POWERED IRRIGATION AND WATERING (Product brochure)
Product Brochures · English 1,7 MB -
TPE, NBE, NKE, NGBE, NKGE (Product brochure)
Product Brochures · English 4,9 MB -
Wash and Clean (Product brochure)
Product Brochures · English 1,0 MB -
NB, NBG, NK, NKG Coated solutions Service Instructions
Service · English 14,9 MB -
NK, NKE - R2 - (Service Kit Catalogue)
Service · English 6,6 MB -
NK, NKE, NKG, NKGE and LS Laser alignment (Service instructions)
Service · English 12,0 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 98111832 (portata e prevalenza equivalenti), disponibili a catalogo.
