Specifiche tecniche
| Tipo pompa | NKE |
| Portata nominale (m³/h) | 442.9 m³/h |
| Prevalenza nominale (m) | 24.94 m |
| Indice di efficienza minima (MEI) | 0.63 |
| Potenza P2 (kW) | 37 kW |
| Fasi | 3 |
| Tensione (V) | 400 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -25 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 10 bar |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BQQE |
| Peso lordo | 838 kg |
| Peso netto | 682 kg |
| Codice motore | 92928098 |
| Codice EAN | 5715123312859 |

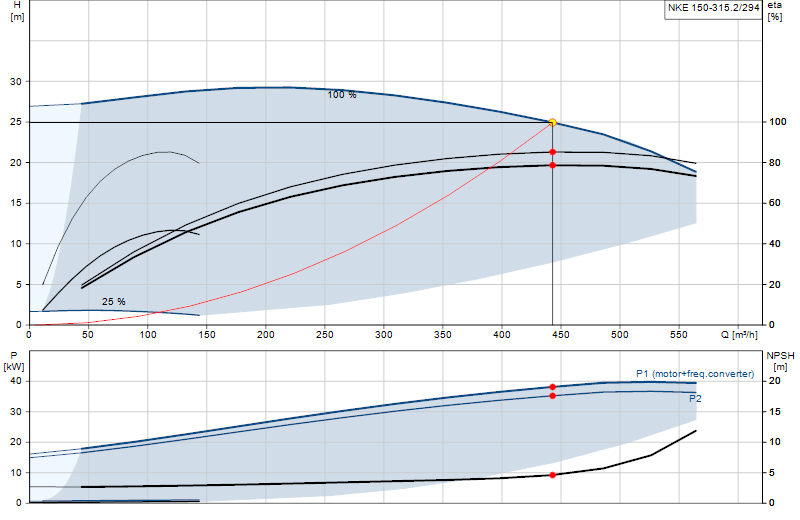

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
