Specifiche tecniche
| Tipo pompa | NK |
| Portata nominale (m³/h) | 579.5 m³/h |
| Prevalenza nominale (m) | 11.84 m |
| Indice di efficienza minima (MEI) | 0.53 |
| Potenza P2 (kW) | 22 kW |
| Fasi | 3 |
| Tensione (V) | 380-400/660-690 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 (Protect. water jets/dust) |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -25 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 10 bar |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Ductile iron |
| Materiale girante | Bronze |
| Tenuta meccanica | BQQE |
| Peso lordo | 1110 kg |
| Peso netto | 945 kg |
| Codice motore | 92816793 |
| Codice EAN | 5715474636499 |

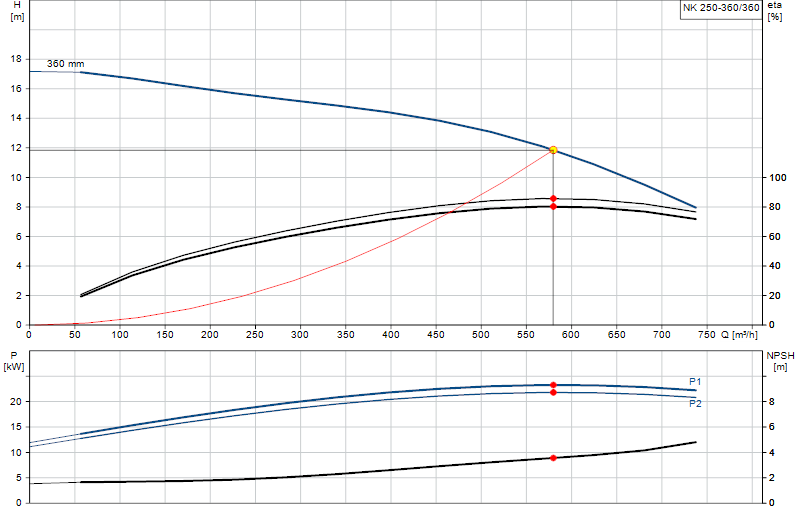

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
