NBGE 80-50-200/199 Grundfos

Grundfos

NBGE 80-50-200/199

Codice: 92822680 EAN: 5715120097230

Tipo NBGE, SuperVortex impeller

Richiesta offerta

Specifiche tecniche

Tipo pompa	NBGE
Portata nominale (m³/h)	31 m³/h
Prevalenza nominale (m)	8.3 m
Potenza P2 (kW)	2.2 kW
Fasi	3
Fasi	3
Tensione (V)	380-500 V
Frequenza (Hz)	50 Hz
Grado di protezione	IP55
Convertitore di frequenza	Built-in
Temperatura liquido max (°C)	120 °C
Temperatura liquido min (°C)	-25 °C
Temperatura ambiente max (°C)	50 °C
Pressione max di esercizio	16 bar
Pressione nominale attacco	PN 16
Materiale corpo pompa	Cast iron
Materiale girante	Cast iron
Tenuta meccanica	BQQE
Peso lordo	83 kg
Peso netto	66 kg
Codice motore	93108476
Codice EAN	5715120097230

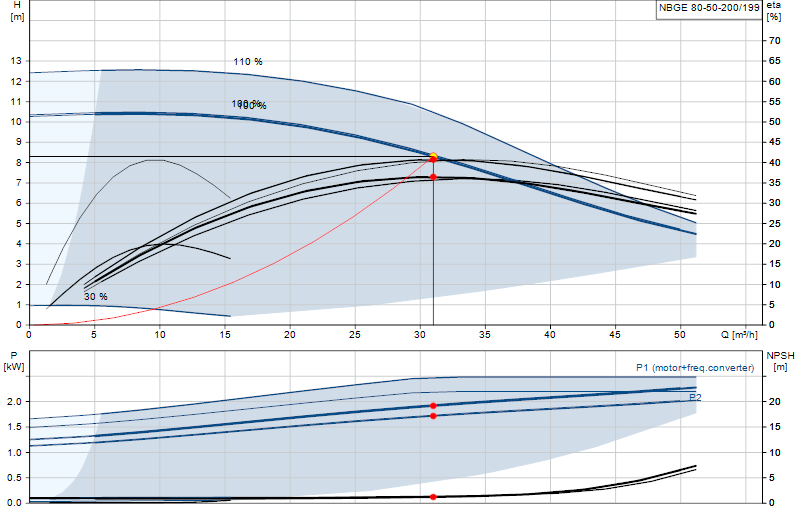

Curva di prestazione

Curva di prestazione NBGE 80-50-200/199

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

NB, NBE, NBG, NBGE (Service Instructions)
Service · English 21,0 MB
NK, NKE, NKG, NKGE (Service instructions)
Service · English 22,9 MB
NBG, NBGE, NKG, NKGE, 50 Hz (Data booklet)
Data booklets · English 40,1 MB
NB, NBG, MTB (I & O instructions)
Installation & operating instructions · English 8,1 MB
NB, NBG, MTB (Safety instructions)
Installation & operating instructions · English 5,6 MB
TPE, TPED Series 1000; NBE, NBGE, NKE, NKGE; TPE, TPED, NBE, NKE Series 2000 (I&O)
Installation & operating instructions · English 6,5 MB
TPE, TPED, NBE, NBGE, MTBE, NKE, NKGE, TPE, TPED, NBE, NKE Series 2000, - below 15 kW, 2-pole and 11 kW, 4-pole
Installation & operating instructions · English 4,8 MB
TPE, TPED; TPE2, TPE2 D, TPE3, TPE3 D; NBE, NBGE, NKE, NKGE; MTBE (Safety instructions)
Installation & operating instructions · English 1,8 MB
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB
NB, NBG, NK, NKG Coated solutions Service Instructions
Service · English 14,9 MB
NBG/E, NKG/E - Super Vortex impeller range – Range 1 (Service Kit Catalogue)
Service · English 8,5 MB

Varianti e codici alternativi

Confronta

NBGE 80-50-200/199

Grundfos NBGE 80-50-200/199 60.1 m³/h39.16 m15 kW

Alternative equivalenti

Pompe della stessa classe idraulica di 92822680 (portata e prevalenza equivalenti), disponibili a catalogo.

Confronta

NKGE 80-50-200/199

Grundfos NKGE 80-50-200/199 31 m³/h8.3 m2.2 kW

Confronta

NB 50-200/171

Grundfos NB 50-200/171 31.28 m³/h8.285 m1.1 kW

Confronta

NKG 80-50-200/171

Grundfos NKG 80-50-200/171 31.28 m³/h8.285 m1.1 kW

Confronta

NBG 80-50-200/171

Grundfos NBG 80-50-200/171 31.28 m³/h8.285 m1.1 kW

Confronta

NBG 80-50-200/199

Grundfos NBG 80-50-200/199 30.79 m³/h8.186 m2.2 kW

Confronta

NKE 50-200/171

Grundfos NKE 50-200/171 31.5 m³/h8.4 m1.1 kW

Confronta

NK 50-200/171

Grundfos NK 50-200/171 31.5 m³/h8.4 m

Confronta

NBGE 80-50-200/171

Grundfos NBGE 80-50-200/171 31.5 m³/h8.4 m1.1 kW
