Specifiche tecniche
| Tipo pompa | NBG |
| Portata nominale (m³/h) | 495.4 m³/h |
| Prevalenza nominale (m) | 80.04 m |
| Indice di efficienza minima (MEI) | 0.62 |
| Potenza P2 (kW) | 160 kW |
| Fasi | 3 |
| Fasi | 3 |
| Tensione (V) | 380-415D/660Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -25 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 16 bar |
| Pressione nominale attacco | PN 16 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BQQE |
| Peso lordo | 1680 kg |
| Peso netto | 1600 kg |
| Codice motore | 93124055 |
| Codice EAN | 5715472398207 |

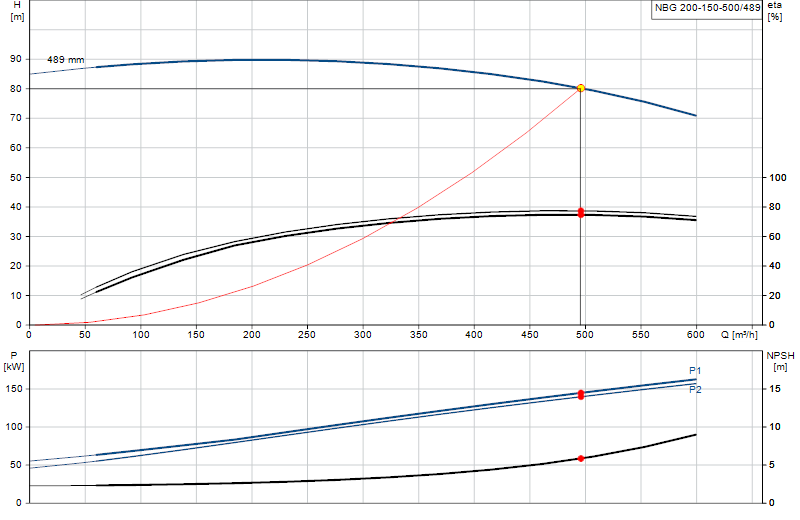

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
