Specifiche tecniche
| Tipo pompa | NBE |
| Portata nominale (m³/h) | 46.2 m³/h |
| Prevalenza nominale (m) | 66.14 m |
| Potenza P2 (kW) | 15 kW |
| Fasi | 3 |
| Fasi | 3 |
| Tensione (V) | 440-480 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 140 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 25 bar |
| Pressione nominale attacco | Class 300 |
| Materiale corpo pompa | Ductile iron |
| Materiale girante | Stainless steel |
| Tenuta meccanica | DAQF |
| Peso lordo | 142 kg |
| Peso netto | 141 kg |
| Codice motore | 93507978 |
| Codice EAN | 5715468963433 |

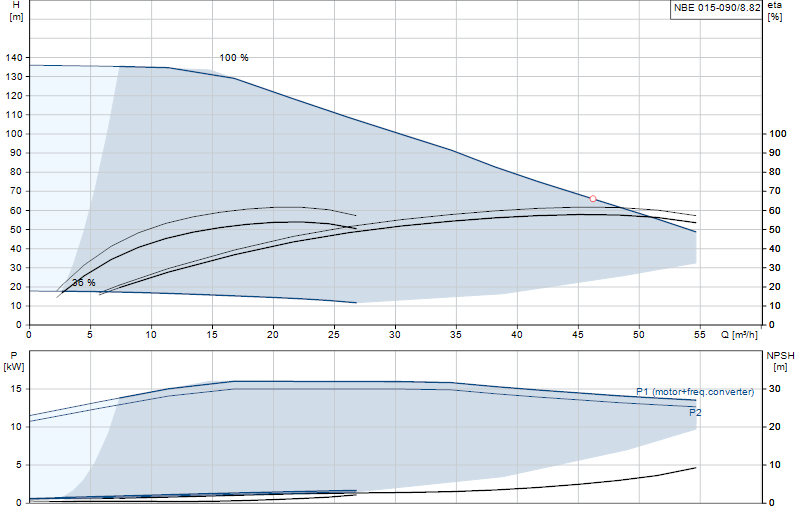

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
