Specifiche tecniche
| Tipo pompa | NB |
| Portata nominale (m³/h) | 380.7 m³/h |
| Prevalenza nominale (m) | 133.2 m |
| Indice di efficienza minima (MEI) | 0.63 |
| Potenza P2 (kW) | 200 kW |
| Fasi | 3 |
| Fasi | 3 |
| Tensione (V) | 380-415D/660Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -25 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 16 bar |
| Pressione nominale attacco | PN 16 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | BQQE |
| Peso lordo | 1510 kg |
| Peso netto | 1430 kg |
| Codice motore | 93124026 |
| Codice EAN | 5715472348820 |

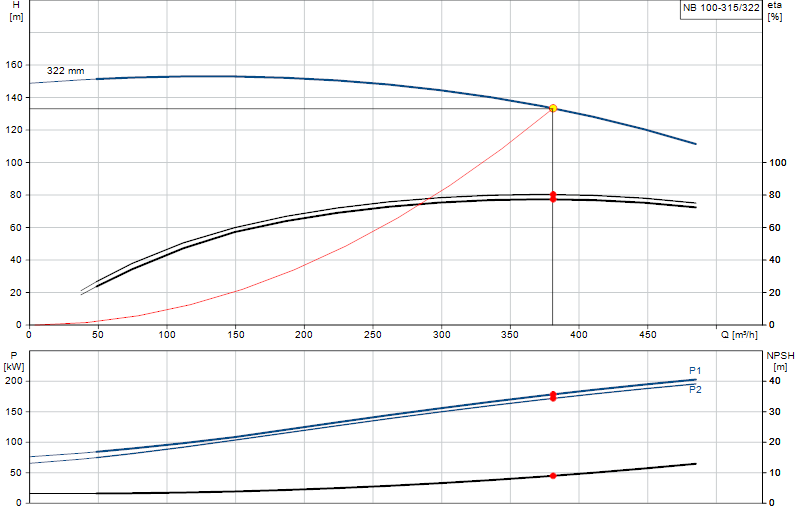

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
