Specifiche tecniche
| Tipo pompa | MTSE |
| Potenza P2 (kW) | 7.5 kW |
| Fasi | 3 |
| Tensione (V) | 380-500 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 80 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Tenuta meccanica | DQ |
| Peso netto | 71.3 kg |
| Approvazioni | CE,UKCA,RCM, |
| Codice motore | 93026095 |
| Codice EAN | 5713832049097 |

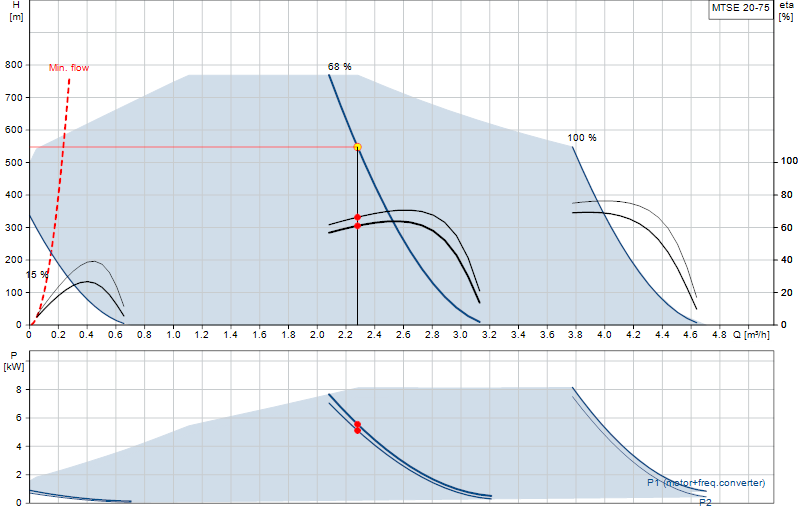

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
