Specifiche tecniche
| Tipo pompa | MTRE |
| Portata nominale (m³/h) | 600 l/min |
| Prevalenza nominale (m) | 19.4 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 3 kW |
| Fasi | 3 |
| Tensione (V) | 200-240 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 30 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 40 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HUUV |
| Altezza (mm) | 95 mm |
| Peso lordo | 85.7 kg |
| Peso netto | 56.8 kg |
| Approvazioni | CE,UKCA,RCM, |
| Codice motore | 93079620 |
| Codice EAN | 5715470214509 |

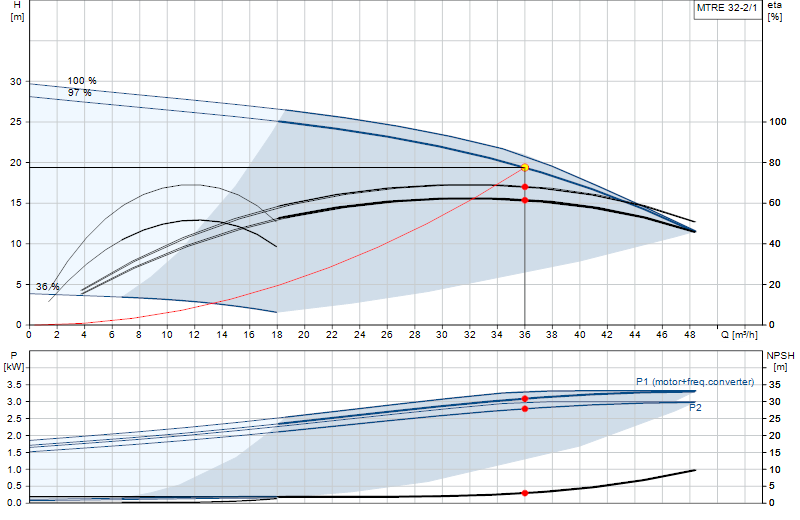

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
MTA (old) to MTA (new) (Data booklet)
Data booklets · English 1,1 MB -
MTHE - Tank top mounted E-pumps (Data booklet)
Data booklets · English 6,6 MB -
MTR, MTRE, SPK, MTH, MTA - immersible pumps (Data booklet)
Data booklets · English 24,8 MB -
MTS model A (Data booklet)
Data booklets · English 6,7 MB -
MTS, MTSE - Model D screw pumps (Data booklet)
Data booklets · English 14,8 MB -
MTS, MTSE model C (Data booklet)
Data booklets · English 28,2 MB -
MTS, MTSE model K (Data booklet)
Data booklets · English 19,8 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
MTS system (Data Sheet)
Data sheets · English 0,3 MB -
Appendix to installation and operating instructions on CRK and MTR (Installation and operating instructions)
Installation & operating instructions · English 0,0 MB -
Correction sheet for SPK pumps (Installation and operating instructions)
Installation & operating instructions · English 0,1 MB -
CRE, CRIE, CRNE, CRTE, SPKE, MTRE, CME, BMS hp, MGE 15-22 kW (I & O instructions)
Installation & operating instructions · English 4,8 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model J, K motor (Installation and operating instructions)
Installation & operating instructions · English 5,9 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model K motor (Safety instructions)
Installation & operating instructions · English 8,3 MB -
CRE, CRIE, CRNE, SPKE, MTRE, MTHE, CME 0.37-11 kW (I & O instructions)
Installation & operating instructions · English 2,3 MB -
CRE, CRIE, CRNE, SPKE, MTRE, MTHE, CME, MGE 71-160 (Safety instructions)
Installation & operating instructions · English 7,2 MB -
CREC, CRIEC, CRNEC, MTREC, CMEC - Supplement to Installation and Operating Instructions
Installation & operating instructions · English 2,1 MB -
CREC, CRIEC, CRNEC, MTREC, CMEC (I & O instructions)
Installation & operating instructions · English 7,4 MB -
MTA (GB + JP version) (I & O instructions)
Installation & operating instructions · English 1,4 MB -
MTA, Asia version (I & O instructions)
Installation & operating instructions · English 1,8 MB -
MTA, EU version (Installation and operating instructions)
Installation & operating instructions · English 1,0 MB -
MTA, Global version (Installation and operating instructions)
Installation & operating instructions · English 1,2 MB -
MTH (I & O instructions)
Installation & operating instructions · English 4,2 MB -
MTS - Model K screw pumps (Installation and operating instructions)
Installation & operating instructions · English 4,5 MB -
MTS, Model D screw pumps (Installation and operating instructions)
Installation & operating instructions · English 2,5 MB -
MTS, Screw pump (I & O instructions)
Installation & operating instructions · English 4,4 MB -
MTS, Screw pumps, Asia version (I & O instructions)
Installation & operating instructions · English 4,4 MB -
MTSE (Installation and operating instructions)
Installation & operating instructions · English 6,6 MB -
MTSE Asian (Installation and operating instructions)
Installation & operating instructions · English 5,9 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS SOLAR SURFACE PUMPS
Product Brochures · English 1,8 MB -
IMMERSIBLE PUMPS FOR INDUSTRY, MTR, MTH, MTA, MTD, MTS (Product brochure)
Product Brochures · English 5,3 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Machine tool (Product brochure)
Product Brochures · English 0,7 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
Refrigeration and Cooling Manual (Handbook)
Product Brochures · English 2,7 MB -
Wash and Clean (Product brochure)
Product Brochures · English 1,0 MB -
Machine tools; MTA, MTAD (Service Kit Catalogue)
Service · English 0,2 MB -
MTA(D) (Service kit instruction)
Service · English 0,4 MB -
MTS/MTSE (Service Kit Catalogue)
Service · English 1,5 MB -
SPK - CRK/CRKI (Service Kit Instruction)
Service · English 3,2 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 93276678 (portata e prevalenza equivalenti), disponibili a catalogo.
Prodotti correlati

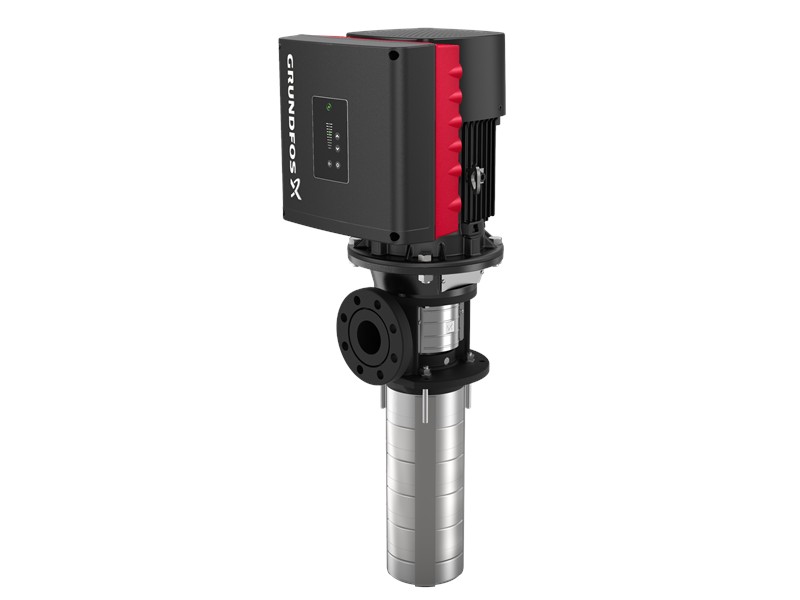

Grundfos 93276678
