Specifiche tecniche
| Tipo pompa | MTRE |
| Portata nominale (m³/h) | 58.3 l/min |
| Prevalenza nominale (m) | 20.6 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 0.55 kW |
| Fasi | 1 |
| Tensione (V) | 200-240 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 30 bar |
| Tipo di attacco | G internal thread |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HUUV |
| Altezza (mm) | 32 mm |
| Peso lordo | 30.7 kg |
| Peso netto | 15.7 kg |
| Approvazioni | CE,UKCA,RCM, |
| Codice motore | 98248246 |
| Codice EAN | 5711494353590 |

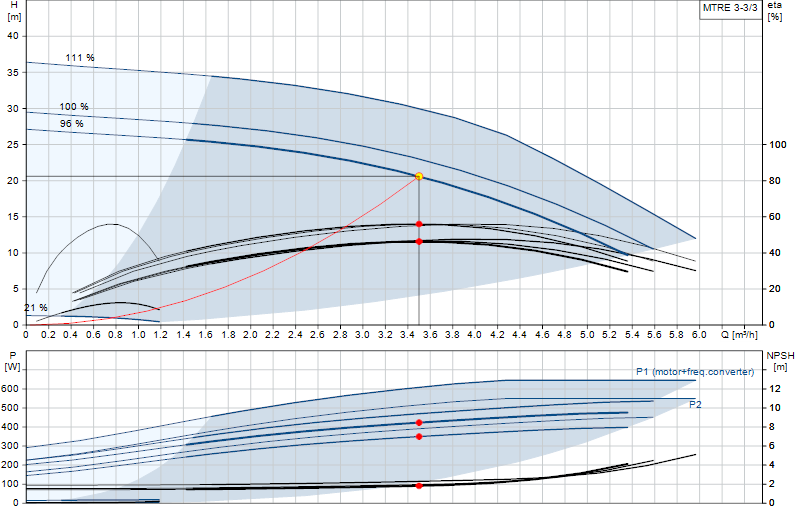

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
