Specifiche tecniche
| Tipo pompa | MTRE |
| Portata nominale (m³/h) | 342 l/min |
| Prevalenza nominale (m) | 46.8 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 5.5 kW |
| Fasi | 3 |
| Tensione (V) | 440-480 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 30 bar |
| Tipo di attacco | NPT(F) |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HUUV |
| Altezza (mm) | 45 mm |
| Peso lordo | 85.1 kg |
| Peso netto | 56.2 kg |
| Approvazioni | CE,UKCA,RCM, |
| Codice motore | 93079597 |
| Codice EAN | 5712606311910 |

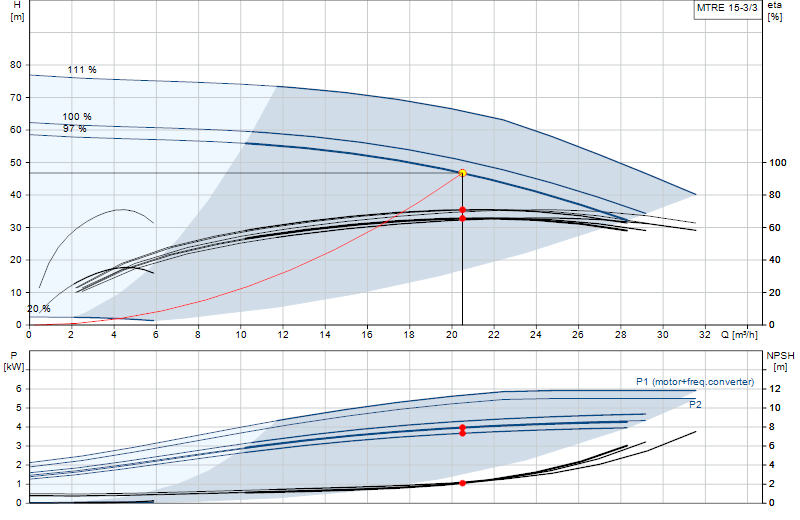

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
