Specifiche tecniche
| Tipo pompa | MTR |
| Portata nominale (m³/h) | 96.7 l/min |
| Prevalenza nominale (m) | 167.7 m |
| Indice di efficienza minima (MEI) | 0.57 |
| Potenza P2 (kW) | 5.5 kW |
| Fasi | 3 |
| Tensione (V) | 220-240D/380-415Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 Dust/Jetting |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Pressione max di esercizio | 25 bar |
| Tipo di attacco | G internal thread |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HUUV |
| Altezza (mm) | 32 mm |
| Peso lordo | 87.4 kg |
| Peso netto | 62.1 kg |
| Approvazioni | CE,EAC,UKCA, |
| Codice motore | 85U07417 |
| Codice EAN | 5711496360978 |

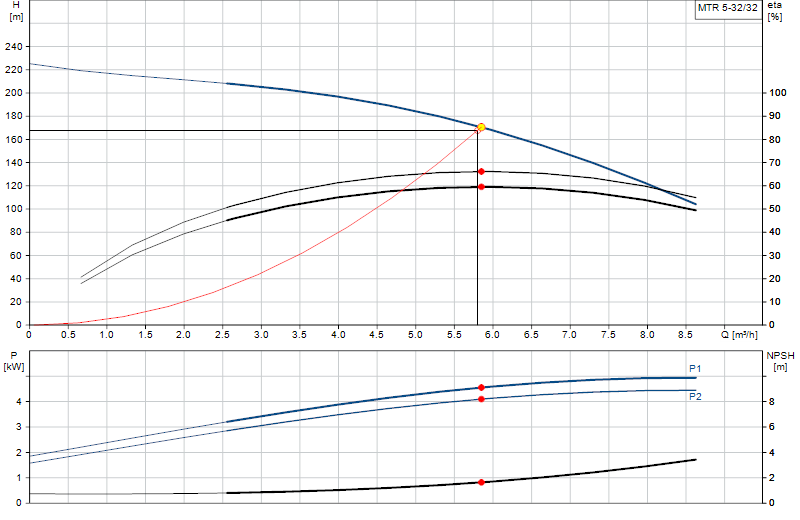

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
