Specifiche tecniche
| Tipo pompa | MTR |
| Portata nominale (m³/h) | 350 l/min |
| Prevalenza nominale (m) | 166.8 m |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 15 kW |
| Fasi | 3 |
| Tensione (V) | 200DD/400D V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 (Protect. water jets/dust) |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Pressione max di esercizio | 25 bar |
| Tipo di attacco | Square / Rp |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AQQV |
| Altezza (mm) | 45 mm |
| Peso lordo | 189 kg |
| Peso netto | 162 kg |
| Approvazioni | CE |
| Codice motore | 98786328 |
| Codice EAN | 5712609706171 |

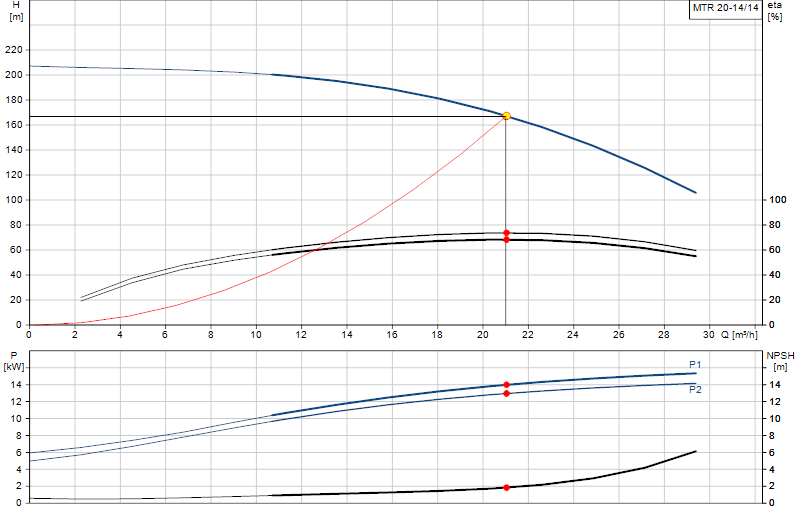

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
