Specifiche tecniche
| Tipo pompa | MTH |
| Indice di efficienza minima (MEI) | 0.70 |
| Fasi | 3 |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP54 |
| Classe di isolamento | F |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 10 bar |
| Tipo di attacco | Rp |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AQQV |
| Altezza (mm) | 25 mm |
| Peso lordo | 14.7 kg |
| Peso netto | 13.6 kg |
| Approvazioni | CE,EAC,UKCA |
| Codice EAN | 5712607190002 |

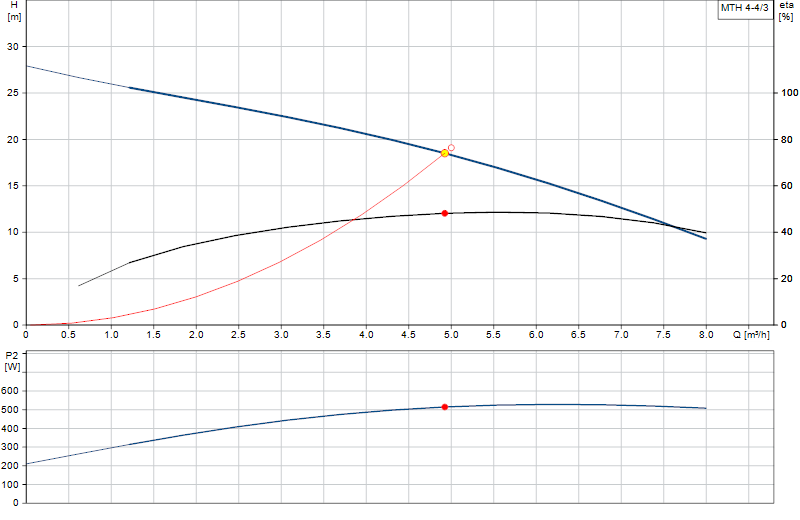

Curva di prestazione
Documenti e datasheet
-
MTH 2, MTH 4, MTC 2, MTC 4, Model A (Service instruction)
Service · English 0,5 MB -
MTH 10, MTH 15, New pump types including replacement guide for MTH 8, 12, 16 (Data booklet)
Data booklets · English 3,6 MB -
MTR, MTRE, SPK, MTH, MTA - immersible pumps (Data booklet)
Data booklets · English 24,8 MB -
SPK, MTH, CRK - Immersible pumps
Data booklets · English 4,3 MB -
MTH (I & O instructions)
Installation & operating instructions · English 4,2 MB -
MTH (I & O instructions)
Installation & operating instructions · English 4,1 MB -
MTH, ZH, JP, KO, CN version (I & O instructions)
Installation & operating instructions · English 12,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
IMMERSIBLE PUMPS FOR INDUSTRY, MTR, MTH, MTA, MTD, MTS (Product brochure)
Product Brochures · English 5,3 MB -
Machine tool (Product brochure)
Product Brochures · English 0,7 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
Refrigeration and Cooling Manual (Handbook)
Product Brochures · English 2,7 MB -
Machine tools; MTH, MTC (Service Kit Catalogue)
Service · English 0,4 MB -
MTH 8, 12, 16 (Service kit instruction)
Service · English 0,4 MB
